Mfr Part #:

FZ750R65KE3

Mfr Name: Infineon

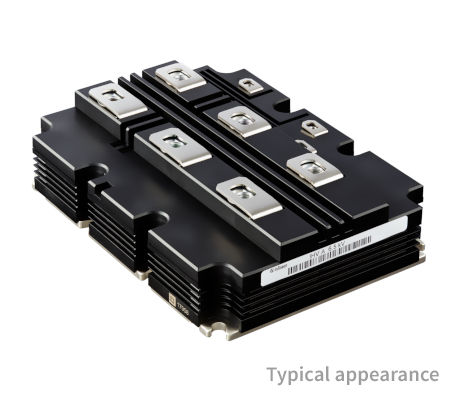

The Infineon FZ750R65KE3 is a highly insulated IGBT module designed for demanding applications. It offers a high collector-emitter voltage of 6500V and a continuous collector current of 750A.

✓ Total Stock: 5,040 pcs

$ Price Range: $103.07

FZ750R65KE3 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	5,040 pcs On Request	5040 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FZ750R65KE3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Mounting Type	Through Hole
SVHC Present	Not Present
Storage Temperature	-55 °C
Tape & Reel	No

View Similar Products (0)

FZ750R65KE3 Description

Short technical summary and product information.

The Infineon FZ750R65KE3 is a highly insulated module featuring Trench/Fieldstop IGBT3 and emitter-controlled 3 diodes. It is designed for industrial applications and offers robust electrical and mechanical characteristics.

Key electrical specifications include a collector-emitter voltage (V CES) of 6500V and a continuous collector current (I C nom) of 750A, with a pulsed collector current (ICRM) of 1500A. The module also boasts low V CE,sat.

Mechanically, it features high creepage and clearance distances, and a package with enhanced insulation of 10.4 kV AC for 60 seconds. It utilizes an AlSiC base plate for improved thermal cycling capability and has a comparative tracking index (CTI) greater than 600. The storage temperature can be extended down to -55 °C.

Potential applications for the FZ750R65KE3 include medium-voltage converters and traction drives. The product is validated for industrial applications according to relevant IEC tests.

FZ750R65KE3 Quick Information

Product Type: IGBT Module

Series: FZ

Canonical Name: Infineon FZ750R65KE3 IGBT Module

Subcategory: IGBTs – Insulated gate bipolar transistors

FZ750R65KE3 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FZ750R65KE3 Estimated Pricing

Qty	Low	High
1+	$103.07	$103.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

FZ750R65KE3 Features

Highly insulated IGBT module design.
6500V collector-emitter voltage rating.
750A continuous collector current.
Enhanced insulation package (10.4 kV AC).
AlSiC base plate for thermal cycling.

FZ750R65KE3 Applications

Used in high-voltage industrial motor drives.
Ideal for renewable energy grid connections.
Suitable for traction inverter power stages.
Applied in medium voltage power supplies.

FZ750R65KE3 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the collector-emitter voltage of the FZ750R65KE3?

The collector-emitter voltage (V CES) is 6500 V.

What is the continuous collector current for the FZ750R65KE3?

The continuous collector current (I C nom) is 750 A.

What is the package insulation rating?

The package has enhanced insulation of 10.4 kV AC for 60 seconds.

What is the storage temperature range?

The storage temperature can be extended down to -55 °C.

What is the Comparative Tracking Index (CTI) of the module?

The module has a CTI greater than 600.

What are the potential applications for this IGBT module?

Potential applications include medium-voltage converters and traction drives.
