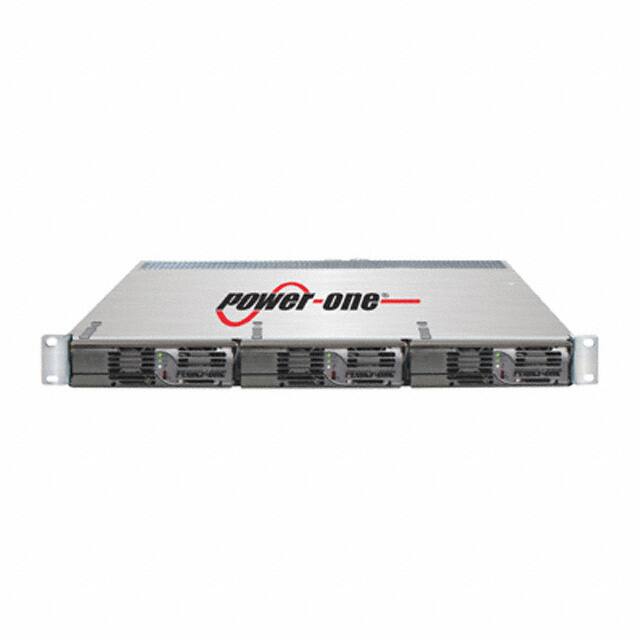

The Bel Power Solutions FXR-3-32G is a power shelf accessory designed to complement the FXP Series of power supplies. This unit provides a nominal 48 VDC output and a 12 VDC standby voltage, making it suitable for various power system configurations.
It is engineered for use with FXP Series power supplies, enabling hot-swap redundant systems and high-density configurations within a 1U rack. The power shelf facilitates rectification, system management, and power distribution, contributing to high reliability and flexibility for future expansion.
Key features include a wide input voltage range of 85 to 264 VAC, supporting diverse power environments. The design emphasizes efficiency and reliability, with status information available via front panel LEDs and an I2C management interface for advanced control and monitoring.
The nominal output voltage (Vo1) for the FXR-3-32G power shelf is 48 VDC.
The FXR-3-32G power shelf provides a 12 VDC standby voltage.
The input voltage range for the FXR-3-32G power shelf is 85 to 264 VAC.
The rated power for the FXR-3-32G power shelf is 1212 W.
The operating ambient temperature range is 0°C to 50°C at 100% load and 0°C to 70°C at 50% load.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
