| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,117 pcs
|
1117 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Frequency (Center | |
| Frequency Group | |
| Height (Max) | |
| Inductance | |
| Lead Style | |
| Mounting Type | |
| Number of Bands | |
| Operating Temperature | |
| Resistance | |
| Return Loss | |
| Termination | |
| Termination Style |

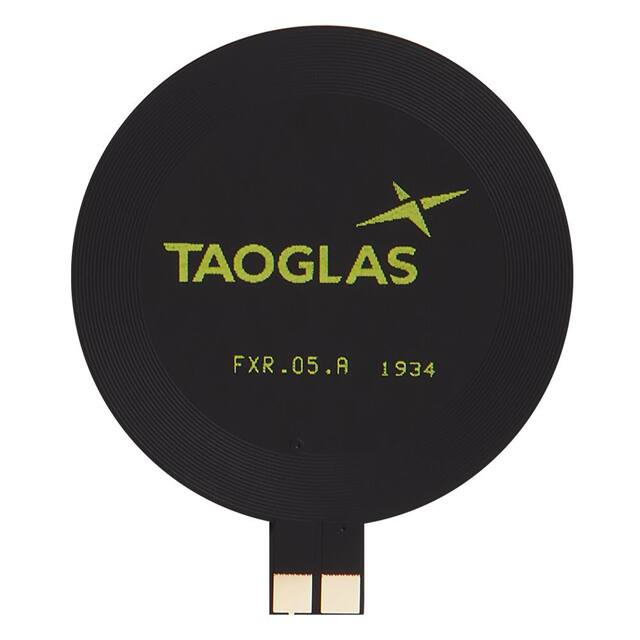

The Taoglas FXR.05.A is a flexible, circular NFC (Near Field Communications) antenna designed for integration into mobile devices and similar applications. Operating at a center frequency of 13.56 MHz, this antenna offers a low profile with a diameter of 26.4 mm and a thickness of only 0.24 mm.
Key electrical specifications include an impedance of 50 Ohms and a return loss greater than 10 dB. The antenna has a self-resonance frequency of 36.25 MHz and a Q factor of 99.2. It is designed for ease of installation with a peel-and-stick 3M adhesive on the back, making it suitable for direct adherence to plastic enclosures.
This antenna is RoHS and REACH compliant, operating within a temperature range of -40°C to 85°C. Its flexible nature and compact dimensions make it ideal for space-constrained designs where NFC functionality is required. The FXR.05.A is part of the FXR series from Taoglas.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FXR.05.A antenna operates at a center frequency of 13.56 MHz.
The FXR.05.A antenna has a diameter of 26.4 mm and a thickness of 0.24 mm.
The FXR.05.A antenna is mounted using an adhesive backing.
The impedance of the FXR.05.A antenna is 50 Ohms.
The FXR.05.A antenna can operate in a temperature range of -40°C to 85°C.
