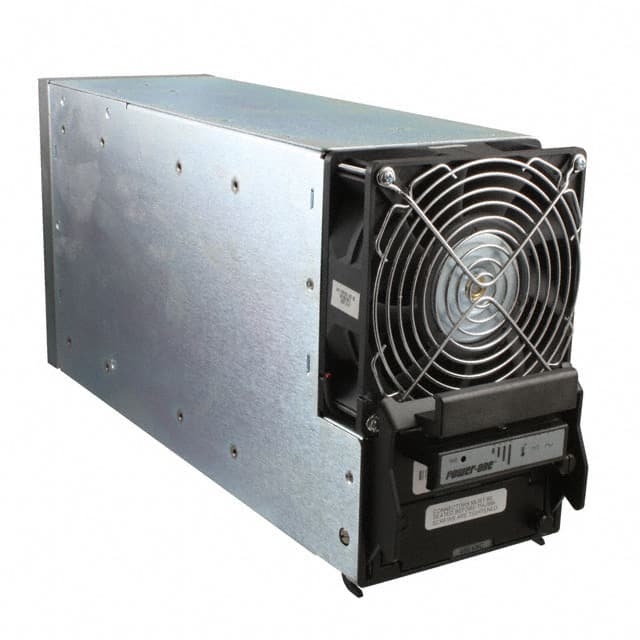

The FXP7000-48-SG is a rack-mountable AC/DC front end power supply from Bel Power Solutions, part of the FXP7000 series. It delivers a nominal 48V output at 145A, providing up to 7000W of power. Designed for three-phase AC input, it accepts a low range of 180-264 VAC or a high range of 342-528 VAC, selectable via front panel.
Key electrical specifications include an output voltage adjustable from 45.6V to 50.4V, efficiency up to 91%, and features such as hot-swappable capability, I2C interface, remote sense, standby output, and current share for up to 30 units. Protection includes overtemperature, overload, and overvoltage.
The supply is housed in a rack mount form factor with dimensions 430.8mm x 203.2mm x 127mm. Operating temperature range is 0°C to 70°C with derating, and airflow is front to rear. It is CE marked and RoHS compliant, suitable for ITE (commercial) applications.
The nominal output voltage is 48V, adjustable from 45.6V to 50.4V.
It accepts three-phase AC input: low range 180-264 VAC or high range 342-528 VAC, selectable via front panel.
The output current is 145A.
The power rating is 7000W.
The mounting type is rack mount.
The operating temperature range is 0°C to 70°C with derating.
The datasheet states RoHS compliant, but the status is unverified.
