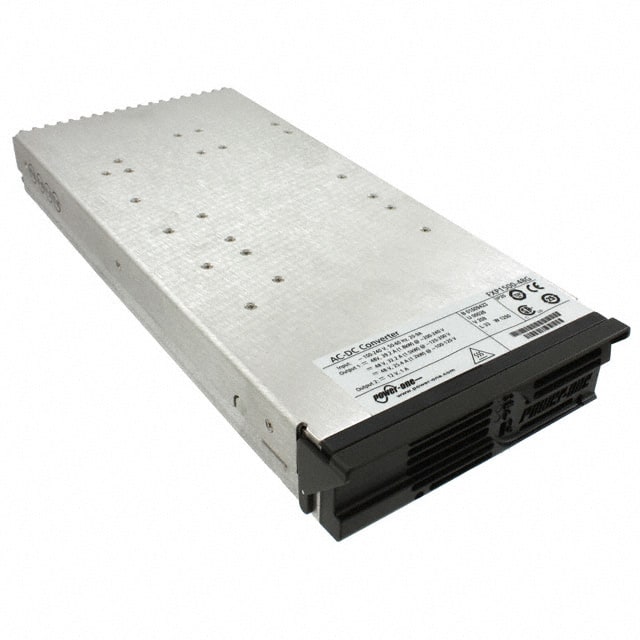

The Bel Power Solutions FXP1500-48G is a high-density, power-factor-corrected AC/DC front-end converter designed for demanding applications. It provides a primary 48VDC output at up to 32.2A and a secondary 12VDC standby output at 1A, delivering a total rated power of 1512W. The unit operates across a wide input voltage range of 85 to 264 VAC, making it suitable for global use.
With a high efficiency of 90%, the FXP1500-48G helps reduce operating costs. It features an I2C management interface for status monitoring and control, including enabling the power supply, setting fan speed, and adjusting output voltage and current limits. The converter is designed for hot-swappable redundant systems and can be configured in 1U racks. Its compact dimensions (305.0mm x 127.0mm x 41.0mm) allow for high power density configurations.
Key features include overtemperature, output overvoltage, and output overcurrent protection. The device meets international safety standards and carries the CE Mark. It is suitable for applications in Telecommunications, Data Communications, Servers, and Distributed Power systems.
The main output voltage is 48 VDC with a maximum current of 32.2 A.
The standby output voltage is 12 VDC with a maximum current of 1 A.
The input voltage range is 85 to 264 VAC.
The rated power is 1512 W.
The typical efficiency is 90%.
The operating temperature range is 0°C to 70°C with derating.
Yes, it features an I2C interface for status and control.
