| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,092 pcs
|
17092 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | 2026-06-03 08:15:11 | |
|
10,504 pcs
|
10504 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,892 pcs
|
7892 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
1,477 pcs
|
1477 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
470 pcs
|
470 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
103 pcs
|
103 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ADC Resolution (Accelerometer) | |
| ADC Resolution (Magnetometer) | |
| Acceleration Full-Scale Range | |
| Acceleration Noise Density | |
| Current Consumption (Typical @ 100 Hz, both sensors active) | |
| Current Consumption (Typical @ 25 Hz, both sensors active) | |
| Lead Spacing | |
| Lead Style | |
| Magnetic Noise Density | |
| Magnetic Sensor Full-Scale Range | |
| Mounting Type | |
| Operating Temperature | |
| Output Data Rate (ODR) | |
| Output Type | |
| Sensor Type | |
| Supplier Device Package | |
| Supply Voltage |

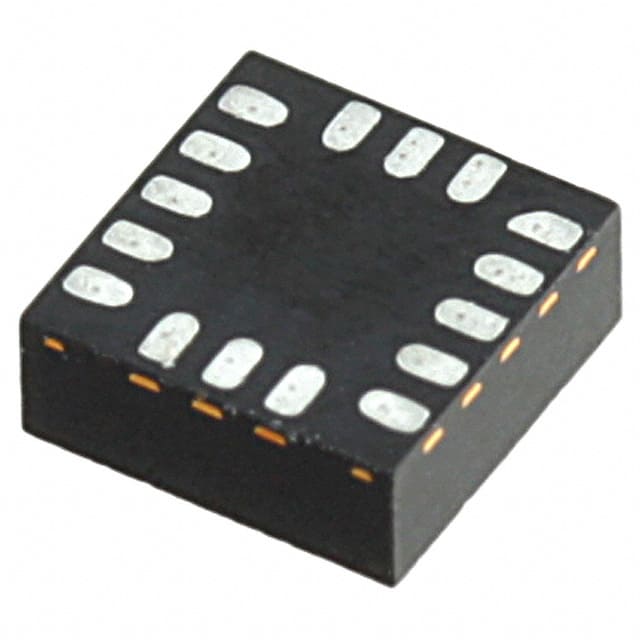

The FXOS8700CQR1 from NXP Semiconductors is a highly integrated 6-axis inertial measurement unit (IMU) that combines a 3-axis linear accelerometer and a 3-axis magnetometer into a single package. This device is designed for a wide range of motion-sensing applications, offering a complete e-compass hardware solution.
It features dynamically selectable acceleration full-scale ranges of ±2 g, ±4 g, or ±8 g, and a fixed magnetic measurement range of ±1200 μT. The output data rate (ODR) is user-selectable from 1.563 Hz to 800 Hz for each sensor, with interleaved data available up to 400 Hz in hybrid mode. The accelerometer boasts 14-bit ADC resolution, while the magnetometer offers 16-bit resolution.
Designed for low power consumption, the FXOS8700CQR1 operates with a VDD supply voltage range of 1.95 V to 3.6 V and a VDDIO voltage range of 1.62 V to 3.6 V. It includes embedded programmable functions for acceleration events like freefall, motion detection, and tap detection, as well as magnetic events such as threshold detection and autonomous hard-iron calibration.
The device is housed in a 16-QFN (3x3) package, suitable for surface mounting. It is guaranteed to operate over an extended temperature range of –40 °C to +85 °C, making it robust for various environmental conditions. Applications include security systems, smart home devices, robotics, UAVs, medical monitoring, and user interface controls.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The VDD supply voltage is 1.95 V to 3.6 V, and the VDDIO voltage is 1.62 V to 3.6 V.
The device is guaranteed to operate over the extended temperature range of –40 °C to +85 °C.
The FXOS8700CQR1 is available in a 16-QFN (3x3) package.
It integrates a 3-axis accelerometer and a 3-axis magnetometer, functioning as a 6-axis sensor.
The acceleration full-scale ranges are dynamically selectable between ±2 g, ±4 g, and ±8 g.
The magnetic sensor has a fixed full-scale range of ±1200 μT.
The device features a selectable I2C or point-to-point SPI serial interface.
