| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37,937 pcs
|
37937 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,080 pcs
|
1080 pcs | On Request | 1 | On Request | On Request | 1433+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Channels per Circuit | |
| Data Rate | |
| Features | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Supply Current | |
| Translator Type | |
| Voltage |
The ON Semiconductor FXLA0104QFX is a configurable dual-voltage supply translator designed for both uni-directional and bi-directional voltage translation between two logic levels. It supports translation between voltages ranging from 1.1V to 3.6V, with the A port tracking VCCA and the B port tracking VCCB. This device features auto-direction sensing, eliminating the need for a direction control pin.
Key electrical specifications include a data rate of 140Mbps and a propagation delay of 9.2 ns. The device operates with a supply current of 10 uA and a maximum power dissipation of 17 mW. It is designed to remain in a three-state condition if either VCC is at GND, offering power-off protection.

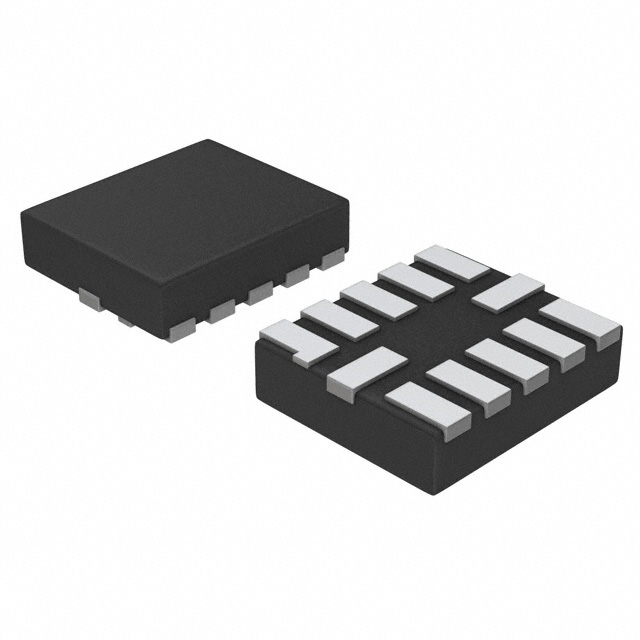

The FXLA0104QFX is available in a 12-UMLP (1.7x2) surface mount package. It operates within a temperature range of -40°C to 85°C (TA). ESD protection exceeds 6 kV HBM and 2 kV CDM.
This translator is suitable for applications such as cell phones, PDAs, digital cameras, and portable GPS devices where flexible voltage level translation is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.1 V to 3.6 V.
12-UMLP (1.7x2) or 12-UFQFN.
-40°C to 85°C.
140 Mbps.
9.2 ns.
6 kV HBM and 2 kV CDM.
10 µA.
