| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

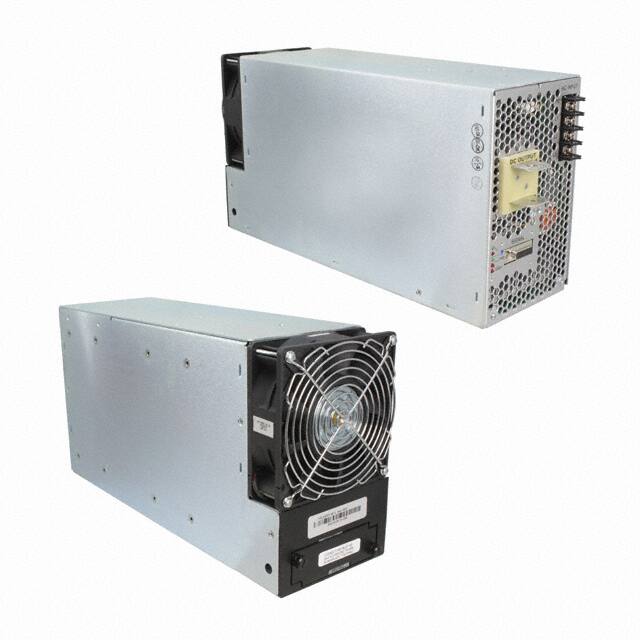

This Bel Power Solutions FXC6000-48-S is a high-power AC/DC converter with a robust 6000W output capacity. It is designed as a front-end power supply with a 48V output voltage and a substantial 125A current capability, suitable for ITE (Commercial) applications.
The converter boasts an efficiency of 91% and operates within a temperature range of 0°C to 70°C with derating. Key features include adjustable output, an I²C™ interface for control and monitoring, remote sense functionality, and a standby output. It is built for rack mounting and meets CE approval standards.
With dimensions of 385.3mm x 203.2mm x 127.0mm, this unit offers a compact yet powerful solution for demanding power requirements. It has a voltage isolation rating of 4 kV.
The operating temperature range is 0°C to 70°C with derating.
The output is 48V at 125A, providing 6000W of power.
It uses rack-mount mounting.
The efficiency is 91%.
Features include adjustable output, I²C interface, remote sense, and standby output.
The isolation voltage is 4 kV.
