Mfr Part #:

FXA350048A

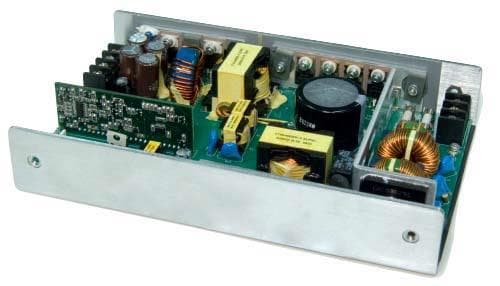

The Inventus Power FXA350048A is an open frame AC/DC converter with a 48V output, delivering 250W of power. It features universal input and chassis mounting.

Stock on Request

FXA350048A Description

Short technical summary and product information.

The Inventus Power FXA350048A is an open frame AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85 to 264 VAC and provides a stable 48V output.

This converter delivers 250W of power, with a forced air option boosting it to 350W. Key features include Power Factor Correction (PFC), Remote Sense, Standby Output, and a wide operating temperature range from 0°C to 70°C with derating. The unit is designed for chassis mounting and has dimensions of 203.2mm x 127.0mm x 38.1mm.

Compliance certifications include CB, CE, and cTUVus. The FXA350048A is RoHS3 compliant and has an MSL rating of 1. It is suitable for various commercial electronic equipment requiring a reliable power supply.

FXA350048A Quick Information

Product Type: AC DC Converter

Canonical Name: Inventus Power FXA350048A AC/DC Converter

Subcategory: AC/DC Converters

FXA350048A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FXA350048A Features

Open frame AC/DC converter design.
Universal input voltage range.
Chassis mount for easy integration.
Features PFC and remote sense.
RoHS3 compliant for environmental standards.

FXA350048A Applications

Industrial automation equipment power supply
Telecom base station power systems
Test and measurement instrumentation
Data center server power backup
Commercial LED lighting power source

FXA350048A FAQs

6 frequently asked questions generated from this part’s specifications.

What is the output voltage and current of the FXA350048A?

The output is 48V at 5.3A.

What is the power rating of this converter?

250W continuous (350W with forced air cooling).

What is the input voltage range?

85 to 264 VAC.

What is the operating temperature range?

0°C to 70°C with derating.

What mounting type does this converter use?

Chassis mount.

What are the physical dimensions?

203.2mm x 127.0mm x 38.1mm.

Category	AC DC Converters
Manufacturer Name	Inventus Power
Applications	ITE (Commercial)
Approval Agency	CB, CE, cTUVus
Current	5.3 A
Efficiency	88%
Features	PFC, Remote Sense, Standby Output, Universal Input
Height	38.1mm (1.50")
Length	203.2mm (8.00")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	0°C ~ 70°C (With Derating)
Power (Watts)	250W (350W Forced Air)
Type	Open Frame
Voltage	85 ~ 264 VAC
Width	127.0mm (5.00")
