| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Type | |
| Voltage |

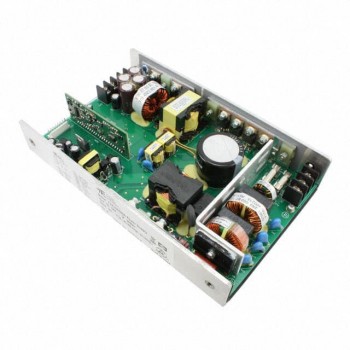

The Inventus Power FXA350028A is an open frame AC/DC converter designed for ITE (Commercial) applications. It operates with a wide input voltage range of 85-264 VAC and delivers a stable 28V output at up to 9A, providing 250W of power under convection cooling and up to 350W with forced air.
Key electrical specifications include an efficiency of 89%, a power factor greater than 0.98, and protections such as over-voltage, over-current, and short-circuit with auto-restart. The unit operates within a temperature range of 0°C to 70°C with derating.
Mechanically, this converter measures 8.00" L x 5.00" W x 1.50" H (203.2mm x 127.0mm x 38.1mm) and is designed for chassis mounting. It supports universal input and features like PFC, remote sense, and a standby output.
Compliance includes CB, CE, and cTUVus certifications, along with emissions standards like FCC class B and CISPR22 class B. It also meets EISA and CEC requirements.
The output voltage is 28V.
The maximum output current is 9A.
The power rating is 250W with convection cooling and 350W with forced air.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 70°C.
The dimensions are 8.00" L x 5.00" W x 1.50" H (203.2mm x 127.0mm x 38.1mm).
The unit is certified by CB, CE, and cTUVus.
