| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight |

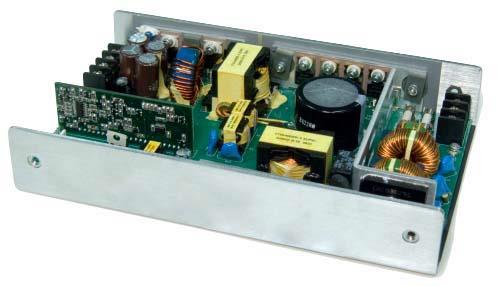

The Inventus Power FXA350015A is a 350 Watt ITE Open Frame Power Supply designed for various applications. It features a wide range AC input from 85 to 264 VAC and provides a stable 15V output voltage with a total regulation of +/-5%. The unit delivers 16.5A of output current under convection cooling and can reach 23.0A with forced air.
Key electrical specifications include a typical efficiency of 88% at 115VAC, a power factor greater than 0.98, and low zero load power consumption of 0.75W. Protection features include over-voltage, over-temperature, over-current, and short-circuit protection with auto-restart.
Mechanically, the power supply measures 8.00" x 5.00" x 1.50" and is designed for chassis mounting. It operates within a temperature range of 0°C to 70°C and has a demonstrated MTBF of over 200,000 hours.
The FXA350015A is certified to multiple safety standards including UL 60950-1, UL 60601-1, CAN/CSA-22.2, and IEC60950-1, and is CE marked to LVD. It also meets EISA and CEC compliance requirements.
The input voltage range is 100-240 VAC (85-264 VAC absolute).
Output voltage is 15.0V. Output current is 16.5A with convection cooling and 23.0A with forced air.
Operating temperature is 0°C to 70°C with derating above 50°C.
It includes over voltage protection (110-135%), over current protection (120-180%), and short circuit protection with hiccup mode auto-restart.
Certifications include UL 60950-1, UL 60601-1, CSA, CB per IEC60950-1 and IEC60601-1, and CE marked to LVD.
Typical efficiency is 88% at 115VAC; average efficiency is 88.5% at 115VAC and 90.6% at 230VAC.
Mounting type is chassis mount. Dimensions are 203.2mm x 127.0mm x 38.1mm (8.00" x 5.00" x 1.50").
