| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

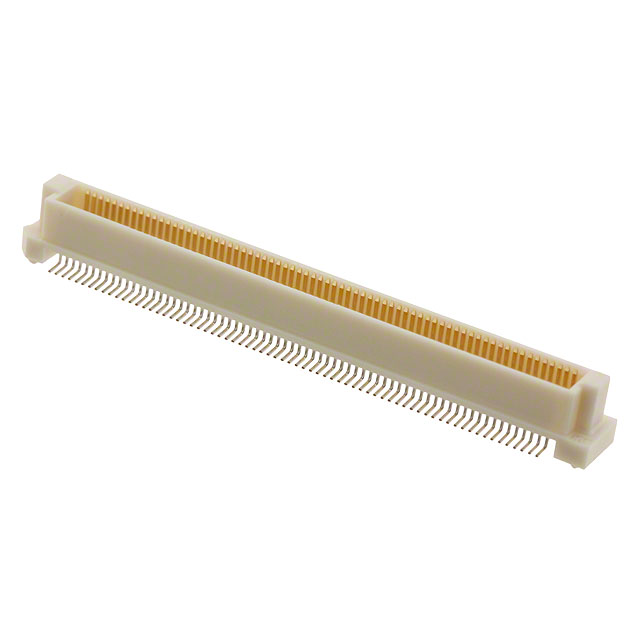

The FX8C-140P-SV(92) from Hirose Electric is a 140-position mezzanine connector header featuring outer shroud contacts. It has a compact 0.6mm pitch and a dual-row configuration, designed for surface mount assembly.
The connector stands 4.45mm above the board and supports mated stacking heights of 5mm and 10mm, making it flexible for various board-to-board spacing requirements. Gold contact finish ensures reliable signal integrity.
A built-in board guide aids in alignment during placement. This component is suitable for dense interconnect applications where reliable, low-profile mating between parallel PCBs is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.52 | $6.52 |
| 10+ | $5.55 | $5.55 |
| 25+ | $5.20 | $5.20 |
| 50+ | $4.95 | $4.95 |
| 100+ | $4.72 | $4.72 |
| 250+ | $4.50 | $4.50 |
| 1,000+ | $4.45 | $4.45 |
| 2,000+ | $4.23 | $4.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
140 positions in 2 rows.
0.60mm.
Surface Mount (SMT).
