| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style |

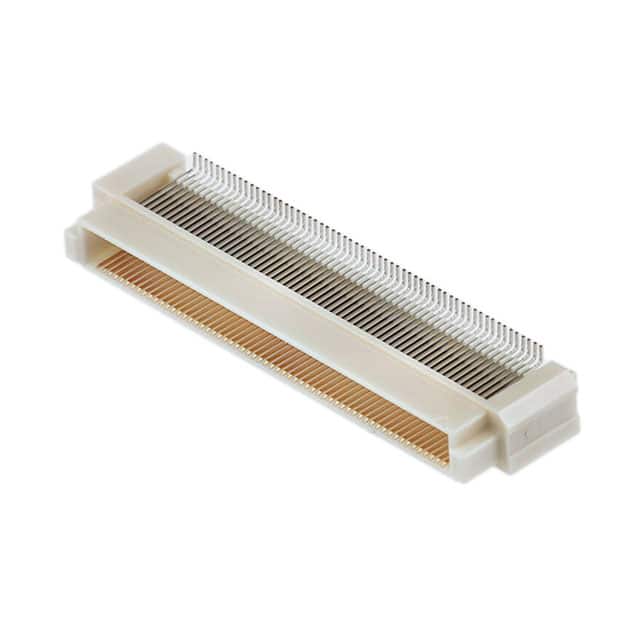

The FX8C-120P-SV6(71) is a 120-position, 2-row surface mount header from Hirose Electric. It features a 0.60mm pitch for high-density board-to-board connections. The connector uses gold contact finish for reliable signal integrity and includes a board guide for accurate alignment during assembly.
With a height above board of 10.85mm, this header supports mated stacking heights of 11mm and 16mm, making it suitable for mezzanine applications. The outer shroud contacts provide robust mechanical retention and protection.
This component is designed for surface mount soldering and is RoHS3 compliant. It is ideal for compact electronic devices requiring high pin count and fine pitch interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.10 | $7.10 |
| 10+ | $6.43 | $6.43 |
| 25+ | $6.07 | $6.07 |
| 50+ | $5.80 | $5.80 |
| 90+ | $4.59 | $4.59 |
| 270+ | $4.46 | $4.46 |
| 540+ | $4.25 | $4.25 |
| 1,080+ | $4.19 | $4.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions.
0.60mm.
Surface mount.
Gold.
11mm and 16mm.
Yes.
