| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
252 pcs
|
252 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel |

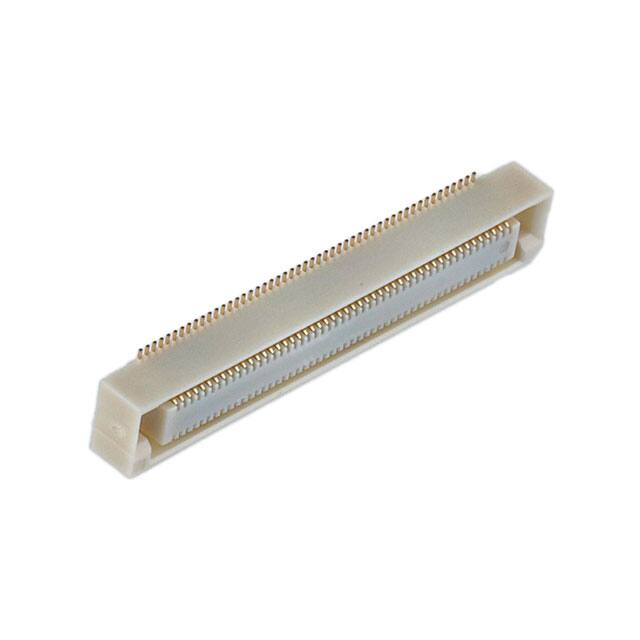

The Hirose FX8C-100S-SV(68) is a 100-position receptacle connector with center strip contacts, designed for board-to-board mezzanine applications. It features a 0.60mm pitch and 2 rows of contacts, enabling high-density interconnections. The connector is surface mount compatible and has a height above board of 3.95mm (0.155").
Supported mated stacking heights range from 5mm to 11mm, providing flexibility in system design. The contacts are finished with gold for reliable conductivity. A board guide feature aids in alignment during assembly.
The connector is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited). It is suitable for compact electronic devices requiring reliable board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.00 | $5.00 |
| 10+ | $4.15 | $4.15 |
| 28+ | $3.94 | $3.94 |
| 56+ | $3.76 | $3.76 |
| 112+ | $3.58 | $3.58 |
| 252+ | $3.38 | $3.38 |
| 504+ | $3.22 | $3.22 |
| 1,008+ | $3.08 | $3.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 positions.
0.60mm.
Surface mount.
5mm, 6mm, 7mm, 9mm, 11mm.
Gold.
Yes, it includes a board guide.
RoHS3 Compliant (unverified).
