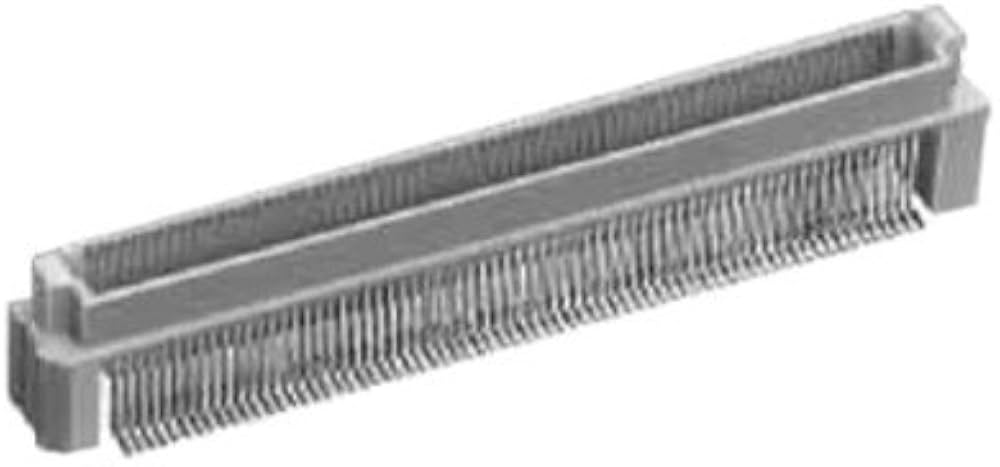

The Hirose Electric FX8C-100P-SV2(71) is a high-density board-to-board connector designed for mezzanine stacking applications. This header connector features 100 positions arranged in 2 rows with a fine 0.6mm pitch, enabling compact and reliable interconnections between parallel PCBs.
Key specifications include a surface mount termination style, gold contact finish for reliable signal integrity, and a board guide feature for accurate alignment during assembly. The connector supports mated stacking heights of 7mm and 12mm, providing flexibility in system design.
With a height above board of 6.45mm, this connector is suitable for space-constrained electronic assemblies. The outer shroud contact design offers protection and robust mating. This part is RoHS3 compliant and has an MSL of 1 (unlimited), simplifying handling and storage requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.77 | $5.77 |
| 10+ | $5.33 | $5.33 |
| 108+ | $4.48 | $4.48 |
| 216+ | $3.72 | $3.72 |
| 1,080+ | $3.45 | $3.45 |
| 2,592+ | $3.30 | $3.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.60mm.
It has 100 positions.
Surface Mount.
7mm and 12mm.
Gold.
It is listed as RoHS3 Compliant, but this is unverified.
