| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
168 pcs
|
168 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

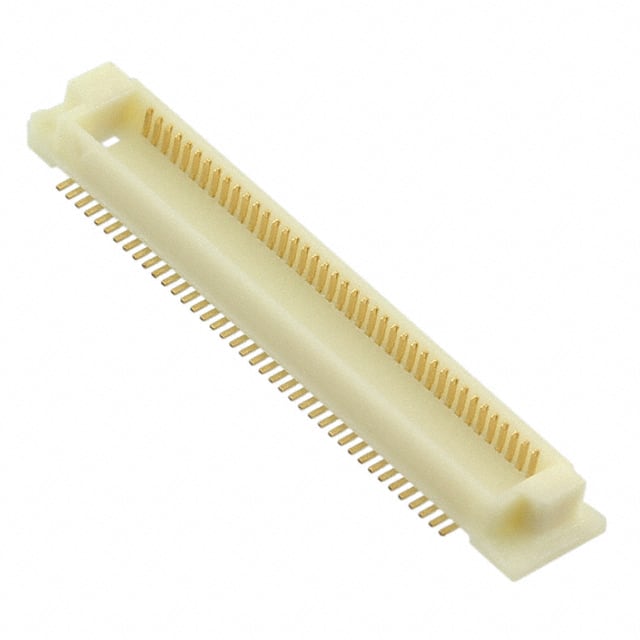

The Hirose Electric FX8-80P-SV(71) is a high-density board-to-board mezzanine connector featuring 80 positions arranged in 2 rows with a 0.6mm pitch. This surface mount header uses outer shroud contacts with a gold finish for reliable signal integrity.
The connector has a mated stacking height of 3mm and a height above board of 0.112" (2.85mm). It includes a board guide feature to assist with alignment during assembly.
Designed for use in compact electronic devices requiring dense parallel board stacking. The surface mount footprint supports automated pick-and-place assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.81 | $3.81 |
| 10+ | $3.53 | $3.53 |
| 25+ | $3.27 | $3.27 |
| 100+ | $3.01 | $3.01 |
| 168+ | $2.84 | $2.84 |
| 504+ | $2.80 | $2.80 |
| 1,008+ | $2.40 | $2.40 |
| 2,520+ | $2.32 | $2.32 |
| 5,040+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 positions.
0.6mm.
Surface mount.
3mm.
2 rows.
Gold.
Yes, a board guide feature.
