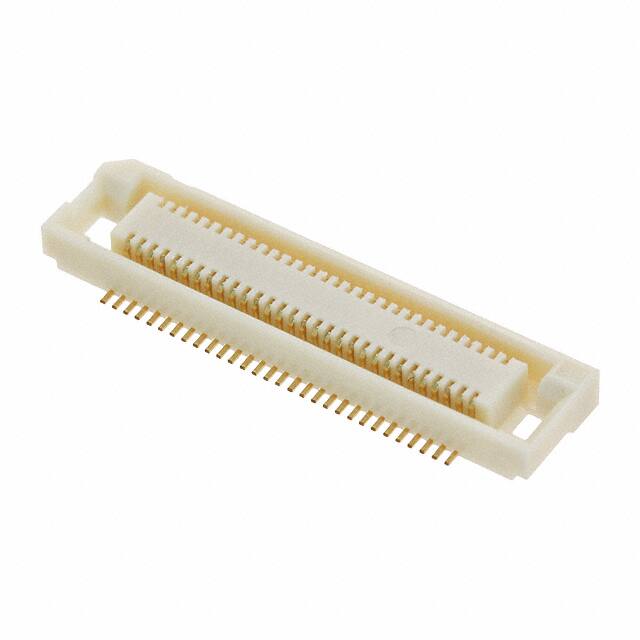

FX8-60S-SV The FX8-60S-SV is a 60-position receptacle connector from Hirose Electric. It features a 0.60mm pitch, surface mount design, and gold contact finish for reliable connections.
Mfr Part #:

FX8-60S-SV

Available from 1 distributors
Mfr Name: Hirose Electric
Hirose Electric
The FX8-60S-SV is a 60-position receptacle connector from Hirose Electric. It features a 0.60mm pitch, surface mount design, and gold contact finish for reliable connections.
✓ Total Stock: 3,536 pcs
$ Price Range: $2.46 - $4.08

FX8-60S-SV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
3,536 pcs
On Request
3536 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FX8-60S-SV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

FX8-60S-SV Description

Short technical summary and product information.

The FX8-60S-SV is a 60-position receptacle connector from Hirose Electric, part of the FX8 series. It features a center strip contact design with 2 rows at a 0.60mm pitch, enabling high-density board-to-board connections. The connector is surface mount compatible and includes a board guide for precise alignment during assembly. Gold contact finish ensures reliable signal integrity and corrosion resistance. The connector has a height above board of 0.089" (2.26mm) and supports mated stacking heights of 3mm and 4mm, making it suitable for mezzanine applications in compact electronic devices.

FX8-60S-SV Quick Information

Product Type: Board-to-Board Connector
Series: FX8
Canonical Name: Receptacle, Center Strip Contacts, 60 Position, 0.60mm Pitch, Surface Mount, Gold
Subcategory: Mezzanine (Board to Board) Array

FX8-60S-SV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FX8-60S-SV Estimated Pricing

Qty Low High
1+ $4.08 $4.08
10+ $3.47 $3.47
25+ $3.10 $3.10
100+ $2.79 $2.79
216+ $2.65 $2.65
432+ $2.57 $2.57
1,080+ $2.48 $2.48
2,592+ $2.46 $2.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

FX8-60S-SV Features

  • 60-position, 2-row receptacle connector.
  • 0.60mm pitch for high-density designs.
  • Surface mount with gold contact finish.
  • Board guide feature for easy alignment.
  • Supports 3mm and 4mm stacking heights.

FX8-60S-SV Applications

  • Mezzanine board-to-board stacking in compact devices.
  • High-density interconnects in portable electronics.
  • Suitable for industrial control modules.
  • Used in telecommunications equipment.

FX8-60S-SV FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the FX8-60S-SV have?

60 positions in 2 rows.

What is the pitch of the FX8-60S-SV?

0.60mm (0.024").

What is the mounting type?

Surface mount.

What contact finish is used?

Gold.

What are the supported mated stacking heights?

3mm and 4mm.

Does the connector have any alignment features?

Yes, it includes a board guide.
