| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

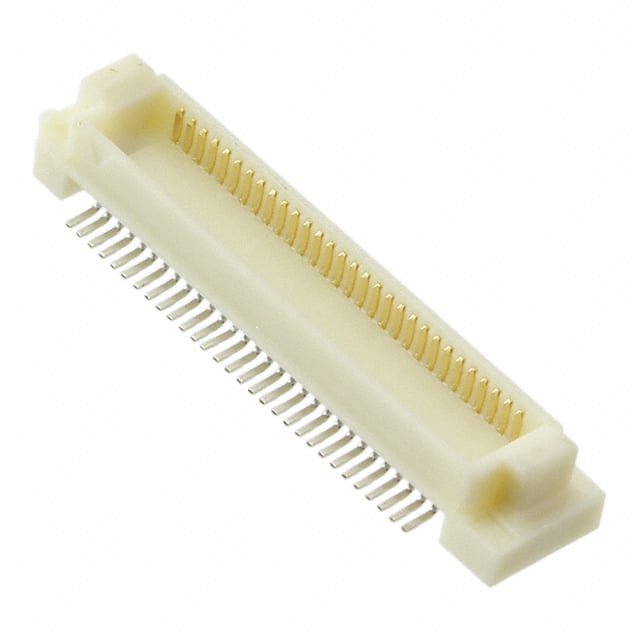

The FX8-60P-SV1(92) is a 60-position header connector from Hirose Electric, featuring outer shroud contacts. It has a 0.60mm pitch and a height above board of 3.85mm, with a mated stacking height of 4mm. The connector is surface mount and comes with gold contact finish. It includes a board guide feature for alignment. This connector is suitable for mezzanine (board-to-board) applications where compact, high-density interconnects are required. The 2-row configuration provides 60 positions in a small footprint. The gold finish ensures reliable conductivity and corrosion resistance. The surface mount package allows for automated assembly. The connector is RoHS3 compliant and has MSL 1 (unlimited) moisture sensitivity level. It is designed for use in various electronic devices requiring board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.72 | $2.72 |
| 10+ | $2.22 | $2.22 |
| 25+ | $2.01 | $2.01 |
| 100+ | $1.93 | $1.93 |
| 1,000+ | $1.93 | $1.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions in 2 rows.
0.60mm.
Surface mount.
Gold.
3.85mm.
4mm.
Yes, it includes a board guide.
