| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel |

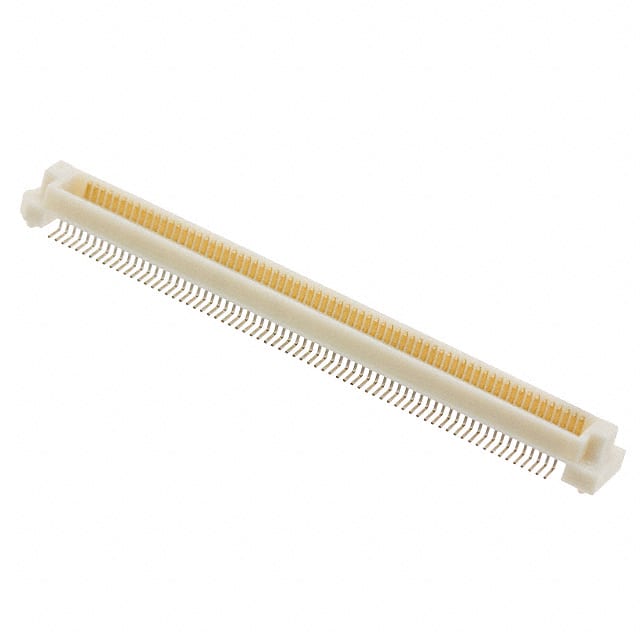

The FX8-140P-SV1(91) from Hirose Electric is a 140-position header connector with outer shroud contacts, designed for board-to-board mezzanine applications. It features a 0.6mm pitch and 2 rows of contacts, providing a compact high-density interconnect solution.
The connector is surface mount type with gold contact finish for reliable connections. The height above board is 3.85mm, and the mated stacking height is 4mm. It includes a board guide feature for alignment during assembly.
This component is listed as RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). It is supplied in tape and reel packaging (standard package quantity not verified).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.55 | $4.55 |
| 10+ | $3.86 | $3.86 |
| 30+ | $3.45 | $3.45 |
| 100+ | $3.28 | $3.28 |
| 250+ | $3.08 | $3.08 |
| 500+ | $2.93 | $2.93 |
| 1,000+ | $2.79 | $2.79 |
| 2,500+ | $2.78 | $2.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
140 positions.
0.6mm (0.024 inches).
Surface Mount.
Gold.
3.85mm (0.152 inches).
4mm.
It is listed as RoHS3 compliant.
