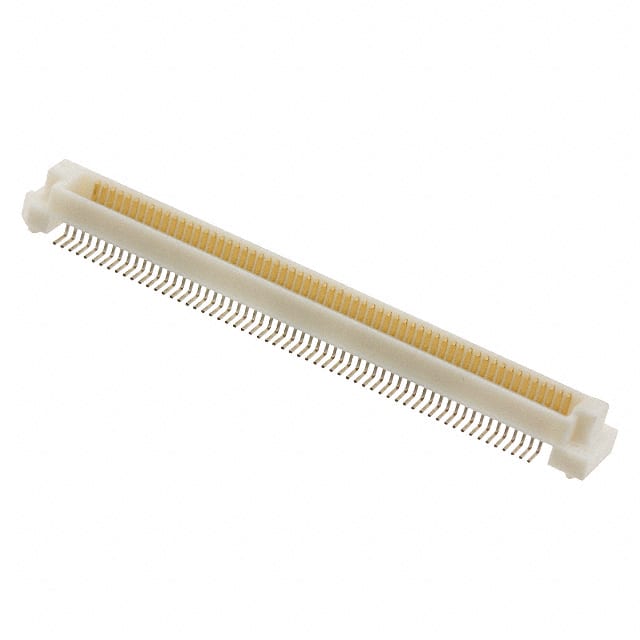

The FX8-120P-SV1(91) is a 120-position, 2-row header connector with outer shroud contacts designed for board-to-board mezzanine stacking. It uses a 0.60mm pitch for high-density connections and is surface mount mounted for automated assembly.
The connector features gold contact finish for reliable conductivity and includes a board guide feature for accurate alignment during assembly. The height above board is 0.152" (3.85mm) and the mated stacking height is 4mm, making it suitable for compact electronic designs.
This connector is categorized under Arrays, Edge Type, Mezzanine (Board to Board) connectors. It is RoHS3 compliant and REACH unaffected (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.70 | $4.70 |
| 12+ | $3.95 | $3.95 |
| 24+ | $3.64 | $3.64 |
| 60+ | $3.51 | $3.51 |
| 108+ | $3.37 | $3.37 |
| 252+ | $3.17 | $3.17 |
| 504+ | $3.02 | $3.02 |
| 1,008+ | $2.88 | $2.88 |
| 2,508+ | $2.70 | $2.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions.
0.60mm (0.024 inches).
Surface mount.
Gold.
4mm.
