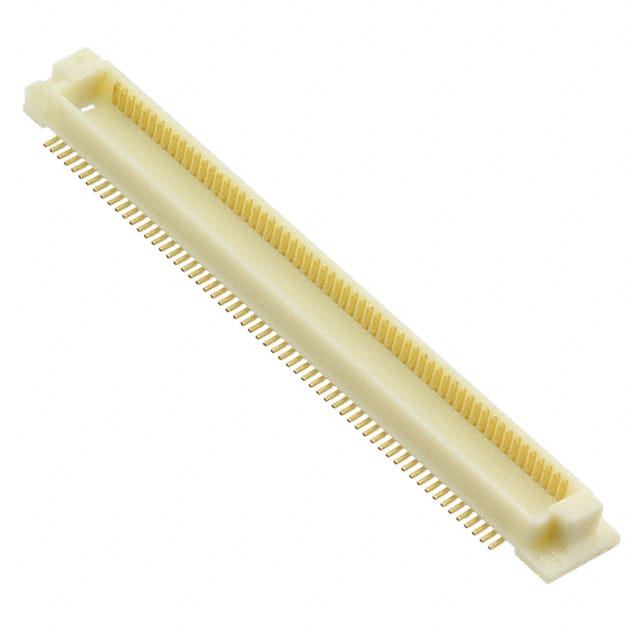

The FX8-120P-SV(71) is a 120 position header with outer shroud contacts from Hirose Electric's FX8 series. It features 2 rows of contacts on a 0.60mm pitch, making it suitable for high-density board-to-board mezzanine applications. The connector is surface mount and has a mated stacking height of 3mm with a height above board of 0.112" (2.85mm).
Contact finish is gold, ensuring reliable signal integrity over repeated mating cycles. The connector includes a board guide feature to assist with alignment during assembly. This component is designed for use in arrays, edge type, and mezzanine (board to board) interconnect applications.
The FX8 series is known for its compact design and high pin count capability, enabling space-efficient connections in electronic devices. The surface mount packaging supports automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.81 | $4.81 |
| 10+ | $4.09 | $4.09 |
| 25+ | $3.83 | $3.83 |
| 50+ | $3.65 | $3.65 |
| 120+ | $3.43 | $3.43 |
| 240+ | $3.17 | $3.17 |
| 600+ | $3.05 | $3.05 |
| 1,080+ | $2.93 | $2.93 |
| 2,520+ | $2.76 | $2.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Header, Outer Shroud Contacts.
120 positions arranged in 2 rows.
0.60mm (0.024").
Surface Mount.
3mm.
Gold.
Yes, it includes a board guide feature.
