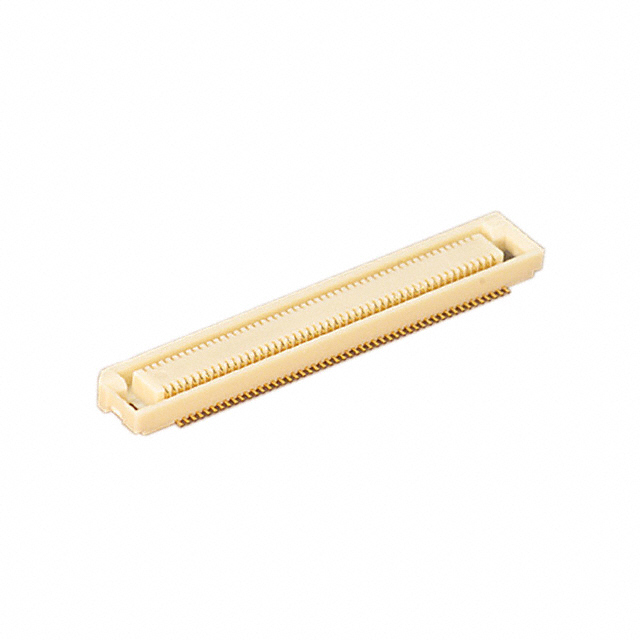

The FX8-100S-SV(23) is a 100-position, 2-row receptacle connector from the Hirose Electric FX8 series, designed for board-to-board mezzanine stacking applications. It features a 0.6mm pitch and surface mount termination with gold-plated contacts for reliable connectivity.
Electrical ratings include a current rating of 0.4A per contact, voltage rating of 100V AC, maximum contact resistance of 45mΩ, minimum insulation resistance of 1000MΩ, and withstanding voltage of 300V AC. The connector operates over a temperature range of -55°C to +85°C and can be stored between -10°C and +60°C.
Mechanical features include a board guide for alignment, mis-insertion prevention boss, and support for stacking heights of 3mm and 4mm. The height above board is 2.26mm. The connector is suitable for compact electronic devices such as notebook PCs and business equipment requiring miniaturization and lightweight design.
