| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
815 pcs
|
815 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Current Rating | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Storage Temperature | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

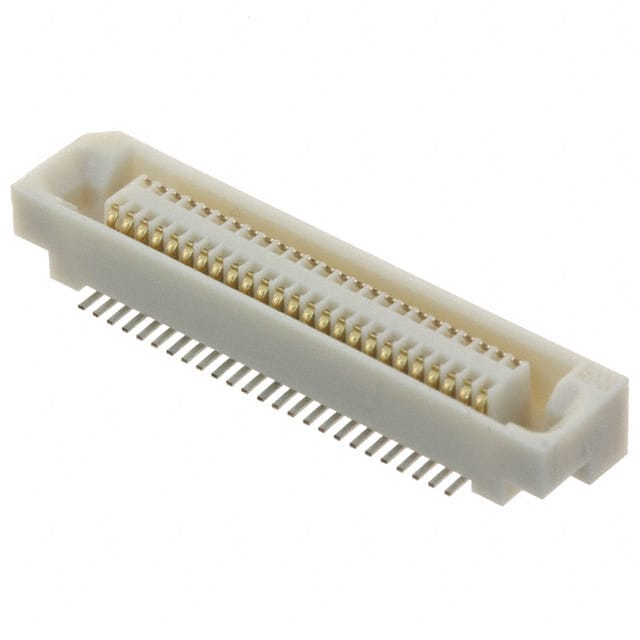

The Hirose FX6A-50P-0.8SV2 is a 50-position, 2-row board-to-board connector from the FX6 series, featuring a 0.8mm pitch and surface mount termination. It is designed for mezzanine stacking applications with mated stacking heights of 7mm or 9mm.
This connector is rated for 0.5A per contact and 100V AC, with a contact resistance of 40mΩ maximum at 100mA and insulation resistance of 100MΩ minimum at 250V DC. It withstands 300V AC for 1 minute without flashover. The operating temperature range is -55°C to +85°C.
The header uses gold-plated contacts and has an effective contact length of 1.7mm, ensuring reliable mating. It is surface mount compatible and the SMT coplanarity is maintained to less than 0.1mm. The connector includes a mating guide with self-alignment of ±1mm for easier assembly.
| Qty | Low | High |
|---|---|---|
| 18+ | $2.38 | $2.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.80mm.
It has 50 positions arranged in 2 rows.
The current rating is 0.5A per contact.
The voltage rating is 100V AC.
It uses surface mount (SMT) termination.
The operating temperature range is -55°C to +85°C.
The mated stacking heights are 7mm and 9mm.
