| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

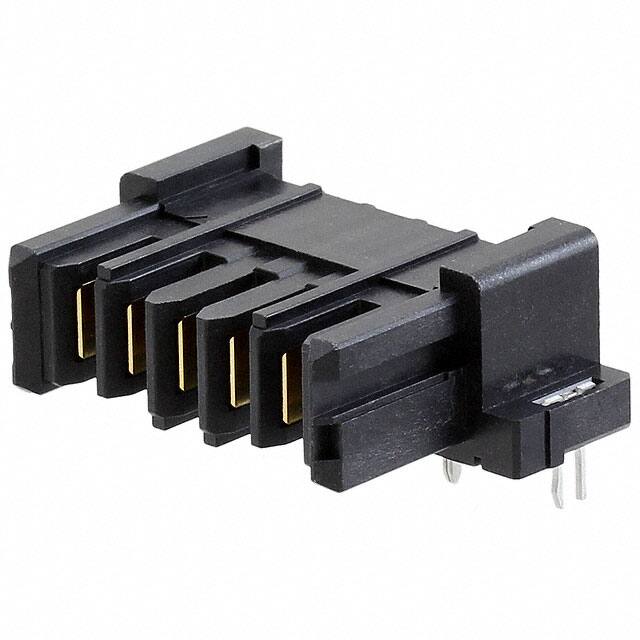

The Hirose Electric FX30B-5P-3.81DS is a 5-position, single-row, 3.81mm pitch header designed for board-to-board connections. It features a right-angle through-hole mounting style with solder termination, making it suitable for compact PCB layouts. The connector is shrouded with a 2-wall design, providing mechanical protection for the male blade contacts.
The contacts are made of copper alloy with a tin finish (3.90µin thickness) and are rectangular in shape. The housing is constructed from polyamide (PA) nylon insulation material, colored black, with a flammability rating of UL94 V-0. The header includes board guide and board lock features for secure mating and alignment.
Electrically, it is rated for 13A current and 250V voltage, with an operating temperature range of -55°C to 105°C. The fastening type is push-pull, and all positions are loaded. This component is suitable for a variety of industrial and commercial applications requiring reliable interconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.59 | $8.59 |
| 10+ | $6.96 | $6.96 |
| 20+ | $6.95 | $6.95 |
| 100+ | $6.20 | $6.20 |
| 500+ | $5.56 | $5.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
3.81mm.
13A.
250V.
Through hole, right angle.
-55°C to 105°C.
Yes, shrouded 2-wall.
