| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
367 pcs
|
367 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

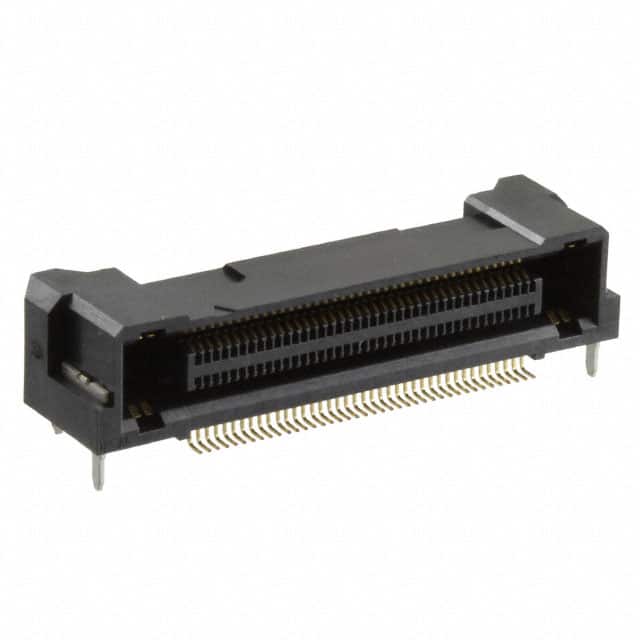

The FX23-80S-0.5SH is a high-density board-to-board connector from Hirose Electric, featuring 84 positions (80 signal contacts plus 4 power contacts) arranged in 2 rows with a 0.50mm pitch. This receptacle connector uses a center strip contact design and is configured for surface mount right angle mounting, making it suitable for mezzanine stacking applications where space is constrained.
The connector has a height above board of 0.287 inches (7.30mm) and includes a board guide feature to assist with alignment during assembly. Contacts are finished with 4.00 microinches (0.100 micrometers) of gold, providing reliable electrical performance and corrosion resistance.
This component is designed for use in arrays, edge type, and mezzanine (board-to-board) interconnect applications. The right angle orientation allows for parallel board stacking with a controlled separation distance.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.83 | $4.83 |
| 10+ | $4.11 | $4.11 |
| 25+ | $3.85 | $3.85 |
| 50+ | $3.57 | $3.57 |
| 72+ | $3.39 | $3.39 |
| 288+ | $3.23 | $3.23 |
| 504+ | $3.11 | $3.11 |
| 1,008+ | $2.96 | $2.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle connector with center strip contacts.
It has 84 positions total, consisting of 80 signal contacts and 4 power contacts.
The pitch is 0.50mm (0.020 inches).
It is surface mount with right angle orientation.
The contacts are finished with gold, 4.00 microinches (0.100 micrometers) thick.
The height above board is 0.287 inches (7.30mm).
Yes, it includes a board guide feature.
