| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,030 pcs
|
4030 pcs | On Request | 1 | On Request | On Request | 17+20+22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style |

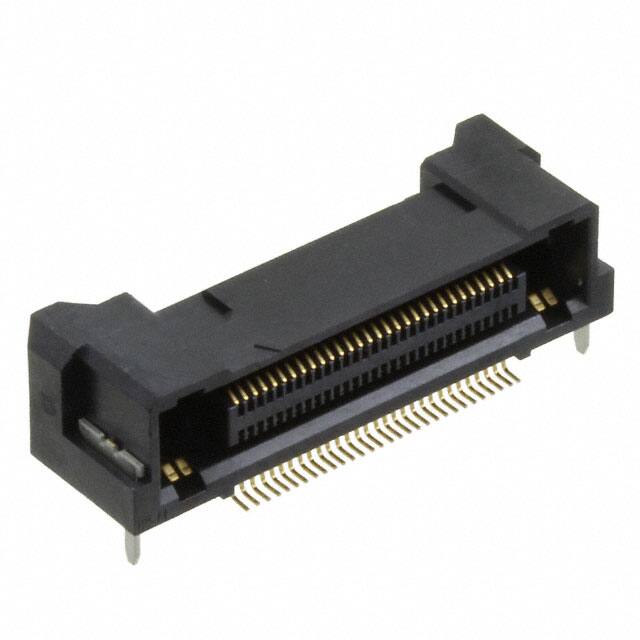

The FX23-60S-0.5SH is a high-density board-to-board receptacle connector from Hirose Electric. It features 60 signal positions plus 4 power positions, arranged in 2 rows with a 0.5mm pitch. The connector is designed for surface mount right angle mounting, making it suitable for parallel board stacking applications. The gold contact finish (0.100µm thickness) ensures reliable conductivity and durability. The connector includes a board guide feature for accurate alignment during assembly. With a height above board of 7.30mm, it is suitable for mezzanine board-to-board applications where a low profile is required. The connector is RoHS3 compliant, MSL 1, and REACH unaffected (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $5.52 | $5.52 |
| 10+ | $5.03 | $5.03 |
| 25+ | $4.76 | $4.76 |
| 50+ | $4.65 | $4.65 |
| 84+ | $4.42 | $4.42 |
| 252+ | $3.87 | $3.87 |
| 504+ | $3.75 | $3.75 |
| 1,008+ | $3.20 | $3.20 |
| 2,520+ | $3.13 | $3.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 64 positions (60 signal + 4 power).
0.50mm (0.020 inches).
Surface mount, right angle.
2 rows.
Gold with 0.100µm thickness.
7.30mm.
Yes, it includes a board guide.
