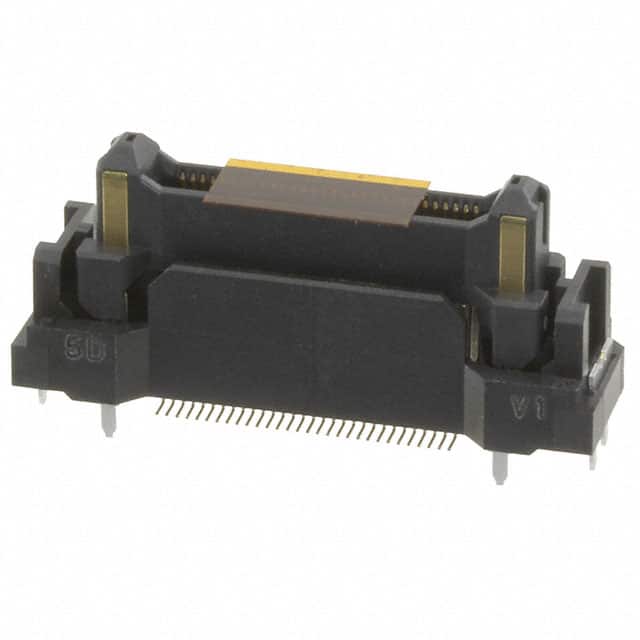

The Hirose Electric FX23-60P-0.5SV15 is a 60-position header connector featuring outer shroud contacts. It has a 0.5mm pitch and a 2-row configuration, with 60 signal contacts plus 4 power contacts. The connector is designed for surface mount soldering and includes a board guide feature for alignment during assembly.
This connector supports mated stacking heights of 15mm and 20mm, making it suitable for mezzanine board-to-board applications. The contacts are finished with 0.100µm (4.00µin) of gold for reliable electrical performance. The height above board is 12.88mm.
The FX23 series is a mezzanine connector family from Hirose Electric, designed for high-density interconnections. The surface mount package and board guide facilitate automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.25 | $5.25 |
| 10+ | $4.49 | $4.49 |
| 25+ | $4.21 | $4.21 |
| 50+ | $3.86 | $3.86 |
| 84+ | $3.67 | $3.67 |
| 252+ | $3.56 | $3.56 |
| 504+ | $3.39 | $3.39 |
| 1,008+ | $3.26 | $3.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 64 positions total: 60 signal contacts and 4 power contacts.
The pitch is 0.50mm.
It uses surface mount (SMD) termination.
The supported mated stacking heights are 15mm and 20mm.
The contacts have a gold finish with a thickness of 0.100µm (4.00µin).
