| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | 17+20+22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style |

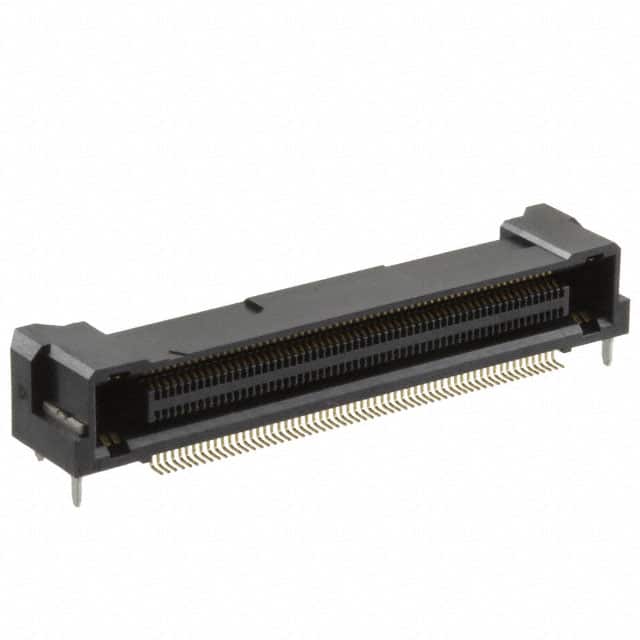

The Hirose Electric FX23-120S-0.5SH is a board-to-board receptacle with center strip contacts, designed for mezzanine stacking applications. It features 124 positions total, comprising 120 signal contacts and 4 power contacts, arranged in 2 rows with a 0.50mm pitch. The connector is configured for right angle surface mount installation, with a height above board of 7.30mm.
The contacts are finished with 4.00µin (0.100µm) gold plating, providing reliable electrical performance and corrosion resistance. The connector includes a board guide feature to assist with proper alignment during assembly. This receptacle is part of the FX23 series from Hirose Electric, which is known for high-density board-to-board interconnects.
With its compact 0.50mm pitch and right angle orientation, this connector is suitable for space-constrained PCB designs requiring high pin counts. The surface mount termination supports automated assembly processes. The 2-row configuration and center strip contact design enable efficient signal routing in mezzanine board stacking applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.88 | $6.88 |
| 10+ | $5.85 | $5.85 |
| 25+ | $5.48 | $5.48 |
| 60+ | $5.15 | $5.15 |
| 120+ | $4.90 | $4.90 |
| 300+ | $4.65 | $4.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 124 positions total, consisting of 120 signal contacts and 4 power contacts.
The pitch is 0.50mm (0.020 inches).
It is a surface mount, right angle connector.
The contacts have a gold finish with a thickness of 4.00µin (0.100µm).
The connector has 2 rows.
The height above board is 7.30mm (0.287 inches).
Yes, it includes a board guide feature.
