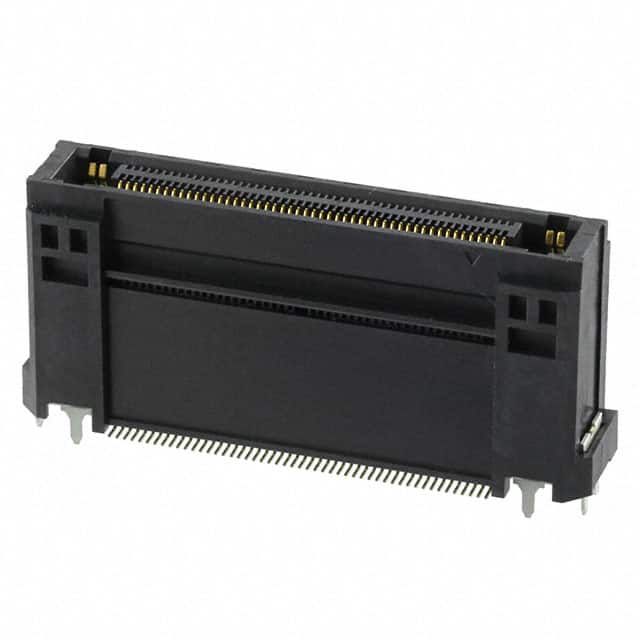

The Hirose FX23-100S-0.5SV10 is a high-density receptacle connector designed for mezzanine board-to-board applications. It features 104 positions (100 signal plus 4 power contacts) arranged in 2 rows with a 0.50mm pitch. The connector uses surface mount termination and gold contact finish with 4.00µin (0.100µm) thickness for reliable signal integrity.
This connector includes a board guide feature to aid in alignment during assembly. It is part of the FX23 series suitable for compact and high-density electronic designs. The RoHS compliance status is noted as RoHS3 compliant, though this is unverified from official sources.
Mounting is surface mount, making it compatible with standard SMD processes. The 0.50mm fine pitch allows for high pin count in a small footprint, enabling dense signal and power routing in space-constrained applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.78 | $7.78 |
| 10+ | $6.62 | $6.62 |
| 25+ | $6.20 | $6.20 |
| 50+ | $5.76 | $5.76 |
| 72+ | $5.47 | $5.47 |
| 288+ | $5.21 | $5.21 |
| 504+ | $5.01 | $5.01 |
| 1,008+ | $4.99 | $4.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 104 positions: 100 signal contacts and 4 power contacts.
The pitch is 0.50mm (0.020").
Surface mount (SMD).
Gold with a thickness of 4.00µin (0.100µm).
Yes, it includes a board guide.
RoHS3 compliant, but this is unverified.
