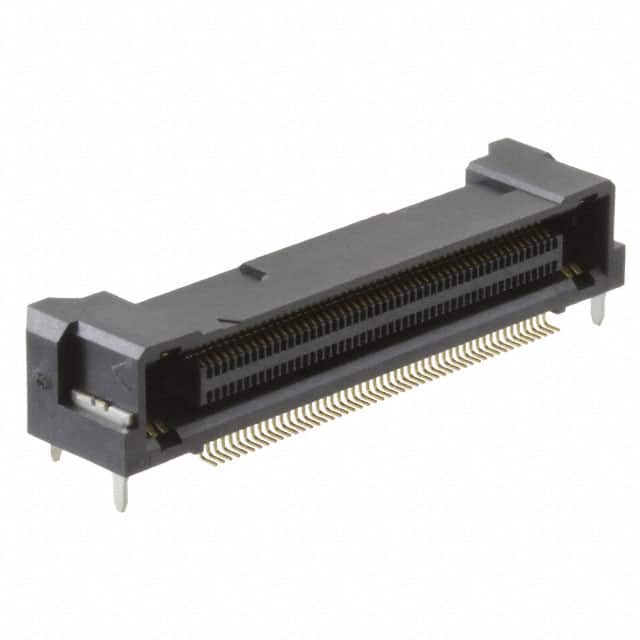

The Hirose Electric FX23-100S-0.5SH is a high-density board-to-board connector featuring 104 positions (100 signal plus 4 power contacts) arranged in 2 rows with a 0.50mm pitch. This receptacle uses center strip contacts and is designed for surface mount right angle mounting, making it suitable for mezzanine or parallel board stacking applications where space is constrained.
The connector includes a board guide feature to assist with alignment during assembly. Contacts are finished with gold plating (4.00µin / 0.100µm thickness) for reliable electrical performance and corrosion resistance. The height above board is 7.30mm (0.287"). Termination is via solder, consistent with the surface mount design.
This part is part of the FX23 series from Hirose Electric, a recognized manufacturer of precision connectors. The connector is RoHS3 compliant and has an MSL rating of 1 (unlimited floor life), though these compliance claims are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.15 | $6.15 |
| 10+ | $5.60 | $5.60 |
| 25+ | $5.30 | $5.30 |
| 50+ | $4.98 | $4.98 |
| 72+ | $4.73 | $4.73 |
| 288+ | $4.31 | $4.31 |
| 504+ | $4.18 | $4.18 |
| 1,008+ | $3.44 | $3.44 |
| 2,520+ | $3.22 | $3.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Receptacle, Center Strip Contacts.
104 positions (100 signal + 4 power).
0.50mm (0.020").
Surface Mount, Right Angle.
Gold, 4.00µin (0.100µm) thickness.
Yes, it includes a board guide.
