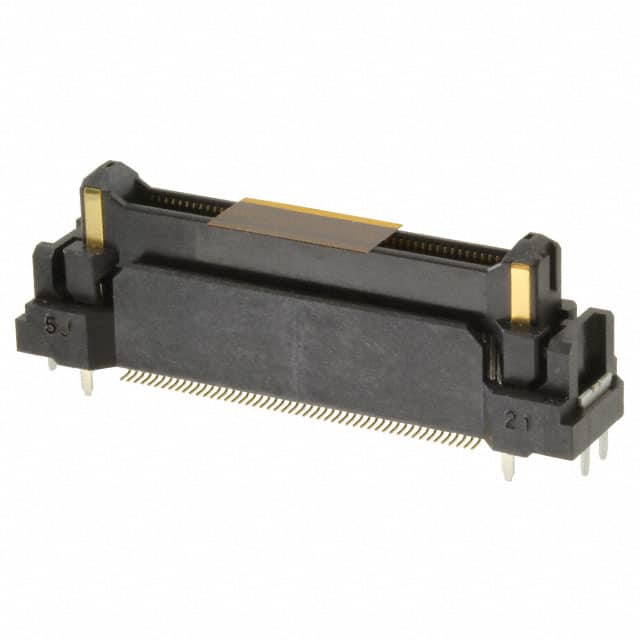

The FX23-100P-0.5SV15 is a surface mount header connector from Hirose Electric, featuring outer shroud contacts. It has 100 signal positions and 4 power positions, with a 0.5mm pitch and 2 rows. The contacts are gold-plated with a thickness of 4.00µin. The connector includes a board guide feature and supports mated stacking heights of 15mm and 20mm. With a height above board of 12.88mm, it is suitable for compact board-to-board connections. The mounting type is surface mount.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.58 | $5.58 |
| 10+ | $5.06 | $5.06 |
| 25+ | $4.84 | $4.84 |
| 50+ | $4.57 | $4.57 |
| 72+ | $4.34 | $4.34 |
| 288+ | $4.13 | $4.13 |
| 504+ | $3.97 | $3.97 |
| 1,008+ | $3.88 | $3.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
104 positions total, comprising 100 signal and 4 power contacts.
0.5mm.
Surface mount.
2 rows.
Gold, with a thickness of 4.00µin (0.100µm).
15mm and 20mm.
Yes, a board guide feature is included.
