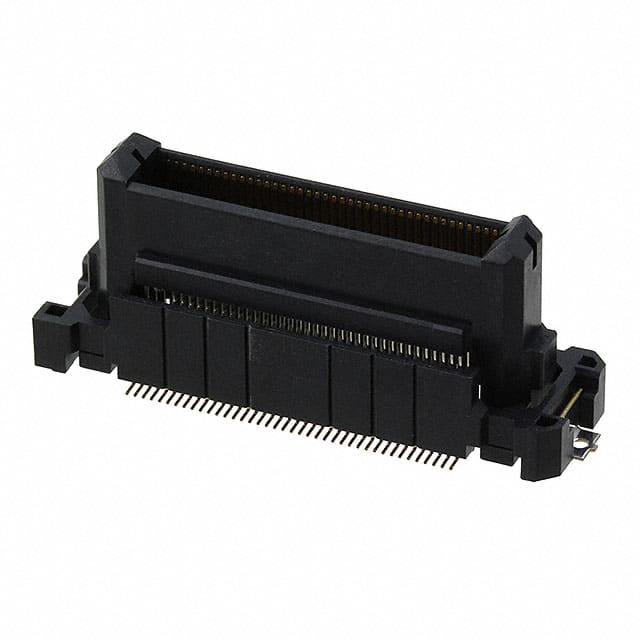

The Hirose Electric FX20-80P-0.5SV15 is a high-density header connector designed for board-to-board and mezzanine applications. This connector features 80 positions arranged in 2 rows with a fine 0.50mm pitch, enabling compact and space-efficient interconnections.
The connector utilizes a surface mount mounting type and is terminated with gold-plated contacts featuring a 4.00µin (0.100µm) thickness for reliable signal integrity. It includes a solder retention feature to secure the connector during the reflow process. The height above board is 0.520" (13.20mm), and it supports mated stacking heights of 15mm and 25mm.
This component is part of the FX20 series from Hirose Electric and is categorized under Arrays, Edge Type, Mezzanine (Board to Board) connectors. It is suitable for use in various electronic devices requiring high pin count and fine pitch interconnections.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.34 | $6.34 |
| 10+ | $5.39 | $5.39 |
| 25+ | $5.06 | $5.06 |
| 60+ | $4.75 | $4.75 |
| 120+ | $4.52 | $4.52 |
| 300+ | $4.23 | $4.23 |
| 540+ | $4.06 | $4.06 |
| 1,020+ | $3.99 | $3.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FX20-80P-0.5SV15 is a Header, Outer Shroud Contacts connector.
The FX20-80P-0.5SV15 has 80 positions.
The pitch is 0.50mm.
The mounting type is Surface Mount.
The contact finish is Gold with a thickness of 4.00µin (0.100µm).
The supported mated stacking heights are 15mm and 25mm.
Yes, it features Solder Retention.
