| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,520 pcs
|
2520 pcs | On Request | 1 | On Request | On Request | 17+20+22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

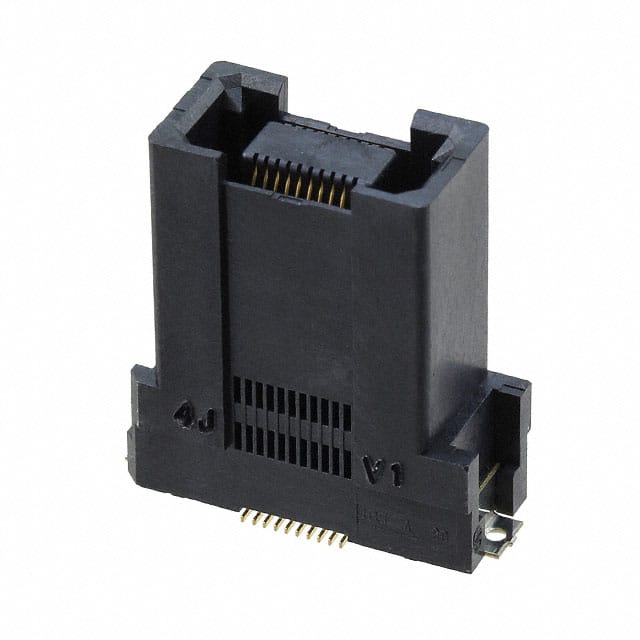

The FX20-20S-0.5SV10 is a receptacle connector with center strip contacts, part of Hirose Electric's FX20 series. It offers 20 positions arranged in 2 rows with a 0.5mm pitch, making it suitable for high-density board-to-board connections. The connector is surface mount (SMD) and includes solder retention features for secure attachment during reflow soldering. With a height above board of 18.3mm, it is designed for mated stacking heights of 25mm and 30mm, enabling flexible spacing between parallel PCBs. This connector is commonly used in mezzanine or stacking applications where space is constrained. The surface mount package facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.92 | $4.92 |
| 10+ | $4.48 | $4.48 |
| 25+ | $4.24 | $4.24 |
| 90+ | $3.93 | $3.93 |
| 270+ | $3.44 | $3.44 |
| 540+ | $3.34 | $3.34 |
| 1,080+ | $2.86 | $2.86 |
| 2,520+ | $2.79 | $2.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
0.5mm (0.020").
Surface mount.
25mm and 30mm.
Yes, it features solder retention.
2 rows.
18.3mm (0.720").
