| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

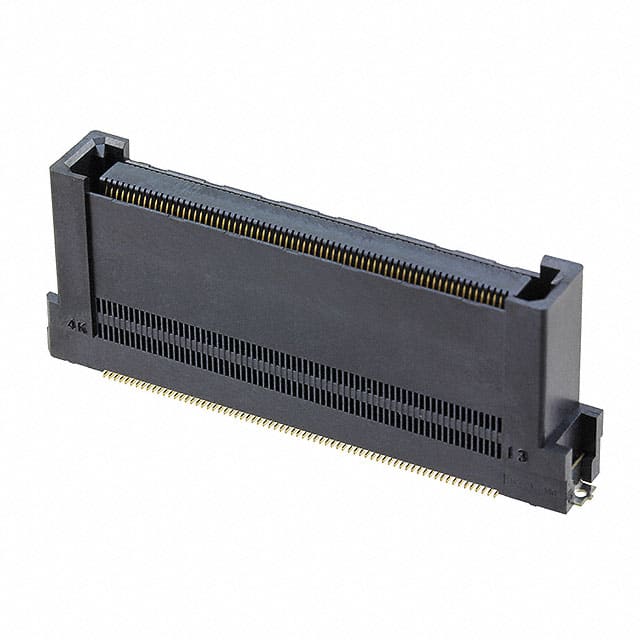

The Hirose Electric FX20-140S-0.5SV10 is a 140 position, 0.5mm pitch surface mount receptacle featuring center strip contacts. This connector is part of the FX20 series and is designed for board to board applications requiring mated stacking heights of 25mm or 30mm.
With a height above board of 18.30mm and a 2 row configuration, this receptacle provides a compact yet robust interconnect solution. The solder retention feature ensures reliable mechanical attachment to the PCB during assembly and operation.
This connector is suitable for mezzanine board stacking applications where high density and fine pitch are required. The surface mount design supports automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.33 | $7.33 |
| 10+ | $6.24 | $6.24 |
| 25+ | $5.85 | $5.85 |
| 50+ | $5.56 | $5.56 |
| 250+ | $4.96 | $4.96 |
| 500+ | $4.72 | $4.72 |
| 1,000+ | $4.68 | $4.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
140 positions.
0.50mm (0.020").
Surface Mount.
25mm and 30mm.
18.30mm.
2 rows.
Yes, it features solder retention.
