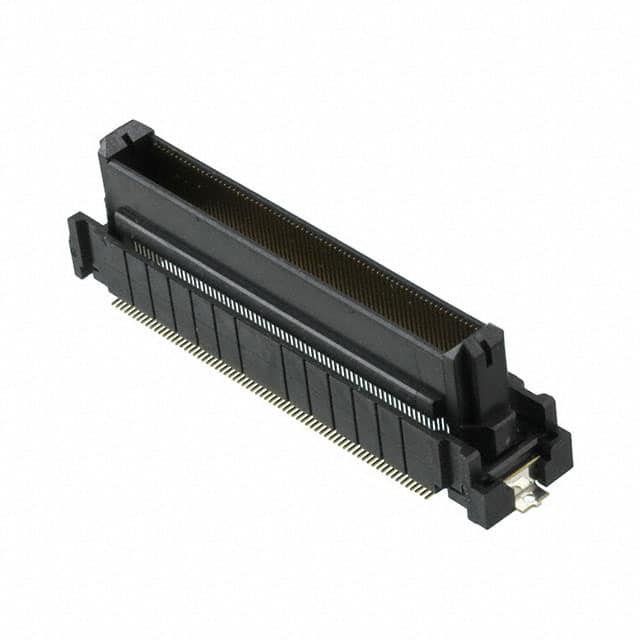

The FX20-140P-0.5SV15 from Hirose Electric is a 140-position, 2-row, 0.5mm pitch mezzanine connector designed for board-to-board applications. It features a header outer shroud contact configuration and is surface mount with gold contact finish (4.00µin thickness). The connector has a height above board of 0.520" (13.20mm) and supports mated stacking heights of 15mm and 25mm, providing flexibility in system design.
This connector includes solder retention features to ensure mechanical stability during assembly and operation. It is part of Hirose's FX20 series, known for high-density interconnects in compact electronic devices. The 0.5mm pitch allows for significant space savings while maintaining reliable signal integrity.
Typical applications include mezzanine board stacking in telecommunications, computing, and industrial electronics where high density and reliable connections are required. The surface mount package facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.28 | $9.28 |
| 10+ | $8.36 | $8.36 |
| 25+ | $7.87 | $7.87 |
| 50+ | $7.67 | $7.67 |
| 100+ | $7.47 | $7.47 |
| 250+ | $6.66 | $6.66 |
| 500+ | $6.26 | $6.26 |
| 1,000+ | $5.72 | $5.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
140 positions.
0.50mm (0.020").
Surface mount.
Gold with 4.00µin (0.100µm) thickness.
15mm and 25mm.
Yes, it features solder retention.
2 rows.
