| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
960 pcs
|
960 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Type |

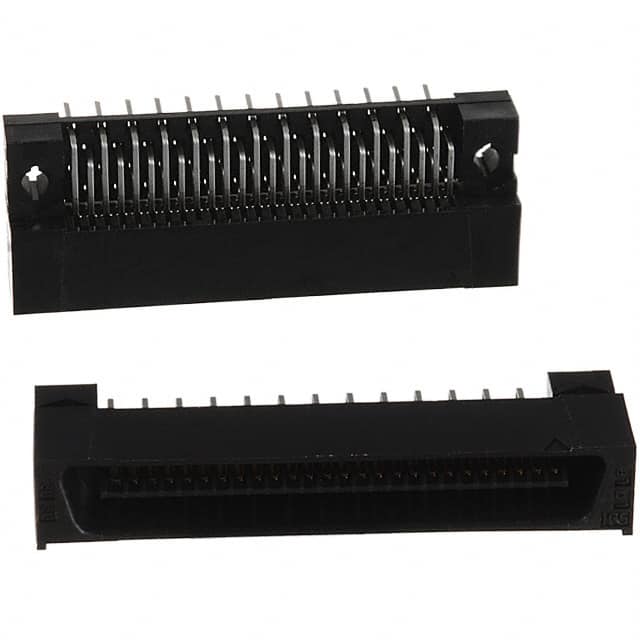

The FX2-52P-1.27DS(71) from Hirose Electric is a 52-position board-to-board plug connector designed for high-density interconnections. It features two rows of contacts with a through hole, right angle mounting style for space-constrained PCB layouts. The contacts are terminated via solder and are gold-plated with a thickness of 7.87µin (0.200µm) for reliable conductivity and corrosion resistance.
This connector employs center strip contacts, which provide robust mechanical and electrical connections between parallel PCBs. It is classified under the Centronics connector category but is specifically intended for board-to-board applications. The plug is RoHS3 compliant, has a moisture sensitivity level of 1 (unlimited), and is REACH unaffected, though these compliance statuses are unverified.
Designed for use in electronic assemblies where reliable board-to-board connections are required, this plug can be used in a variety of equipment including computer peripherals, telecommunications, and industrial controls. The 52-position count allows for high signal density, making it suitable for parallel data transmission or multi-signal interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
| 10+ | $5.79 | $5.79 |
| 25+ | $5.47 | $5.47 |
| 60+ | $4.52 | $4.52 |
| 120+ | $4.29 | $4.29 |
| 300+ | $4.03 | $4.03 |
| 540+ | $3.86 | $3.86 |
| 1,020+ | $3.69 | $3.69 |
| 2,520+ | $3.46 | $3.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
52 positions.
Through hole, right angle.
2 rows.
Gold with thickness 7.87µin (0.200µm).
Center strip contacts.
Plug.
Board to board.
