| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Type |

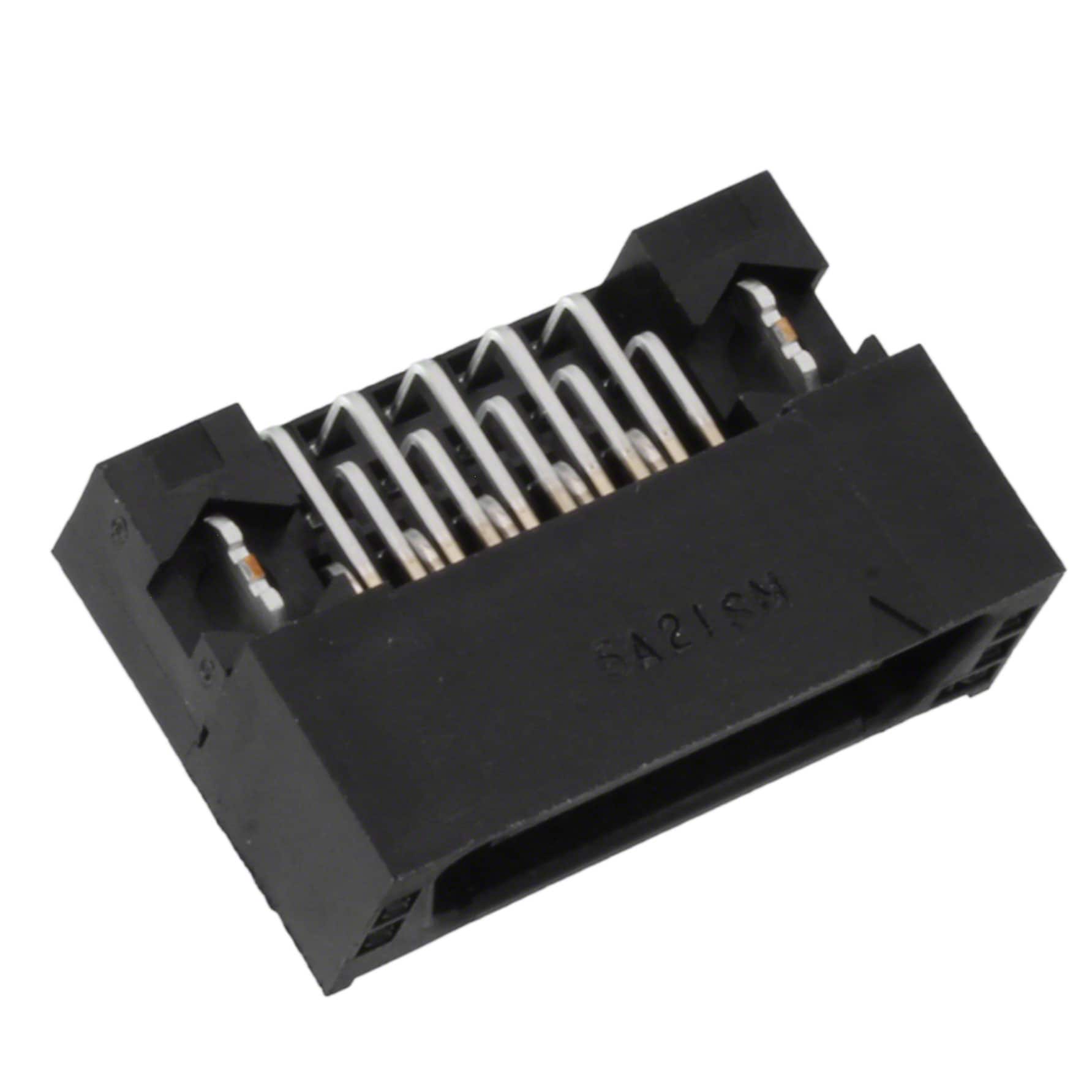

The Hirose Electric FX2-20P-1.27DSL(71) is a board-to-board plug connector designed for reliable parallel board stacking. It offers 20 positions arranged in 2 rows with a compact 1.27mm pitch, making it suitable for space-constrained applications.
The connector features a through hole right angle mounting style with solder termination for secure attachment to the PCB. Gold-plated contacts ensure excellent conductivity and corrosion resistance. A board lock feature provides additional mechanical retention during assembly and operation.
This connector is part of the FX2 series from Hirose Electric, known for high-density board-to-board interconnects. It is RoHS3 compliant and has an MSL rating of 1 (unlimited), indicating no moisture sensitivity restrictions.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.55 | $4.55 |
| 10+ | $3.87 | $3.87 |
| 25+ | $3.46 | $3.46 |
| 110+ | $3.27 | $3.27 |
| 220+ | $3.02 | $3.02 |
| 550+ | $2.91 | $2.91 |
| 1,100+ | $2.77 | $2.77 |
| 2,530+ | $2.61 | $2.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions arranged in 2 rows.
The pitch is 1.27 mm.
It is through hole, right angle mounting.
It is a board-to-board plug connector with center strip contacts.
The contact finish is gold.
Yes, it includes a board lock feature.
