| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,565 pcs
|
6565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Resistance | |
| Current Rating | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Storage Temperature | |
| Termination | |
| Type | |
| Voltage Rating | |
| Withstanding Voltage |

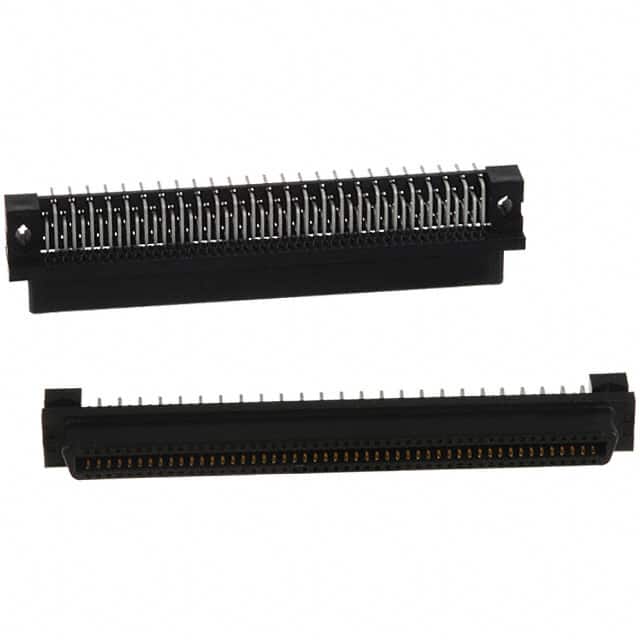

The Hirose Electric FX2-100S-1.27DS is a 100-position board-to-board receptacle from the FX2 series, featuring a 1.27mm pitch and right angle through hole mounting. This connector is designed for stacking applications with a board-to-board stack height range of 12 to 16 mm, allowing flexible spacing in dense PCB assemblies.
Electrical specifications include a current rating of 0.5 A per contact, a voltage rating of 125 V AC, a maximum contact resistance of 45 mΩ, and a minimum insulation resistance of 1000 MΩ. The connector can withstand 300 V AC for one minute without flashover or breakdown.
The operating temperature range is -55 to 85 °C, making it suitable for a wide range of environments. The outer shroud contact design and gold contact finish ensure reliable mating and corrosion resistance. This receptacle is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 35+ | $4.43 | $4.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27 mm.
The current rating is 0.5 A per contact.
The voltage rating is 125 V AC.
It uses through hole, right angle mounting with solder termination.
It has 100 positions arranged in 2 rows.
The operating temperature range is -55 to 85 °C.
