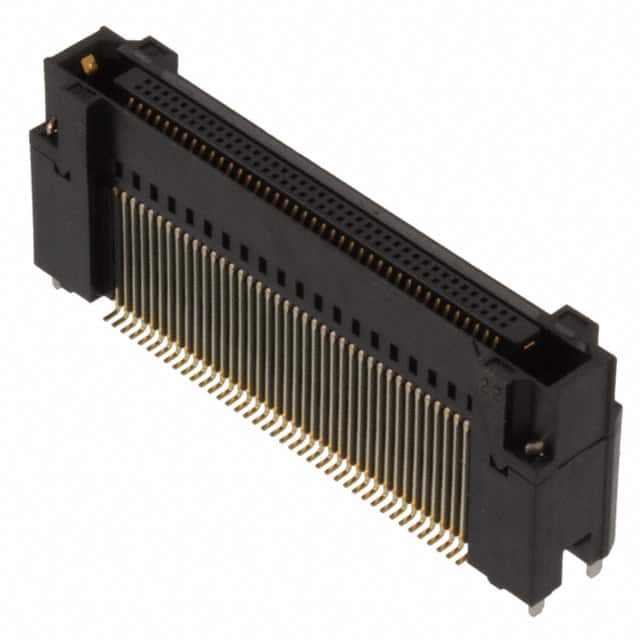

The FX18-80S-0.8SV20 is a 80-position, 2-row board-to-board receptacle connector manufactured by Hirose Electric. It features a 0.8mm pitch and surface mount termination, making it suitable for compact mezzanine stacking applications. The connector includes a board guide and supports mated stacking heights of 20mm and 30mm.
The receptacle uses gold-plated contacts with a thickness of 4.00µin (0.100µm) for reliable electrical performance. Its height above board is 16.46mm (0.648 inches). The connector is designed for surface mount assembly with gull wing leads, typical for board-to-board interconnects in high-density electronic systems.
Common applications include connecting stacked PCBs in networking, telecommunications, and industrial equipment where reliable high-density connections are required. The 0.8mm pitch allows for significant space savings while maintaining sufficient contact density.
This connector is RoHS compliant and REACH unaffected, though these compliance statuses are unverified. The part is also available under distributor part number H12017-ND from Digi-Key.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.75 | $10.75 |
| 10+ | $9.68 | $9.68 |
| 25+ | $9.12 | $9.12 |
| 50+ | $8.88 | $8.88 |
| 100+ | $8.65 | $8.65 |
| 250+ | $7.71 | $7.71 |
| 500+ | $7.24 | $7.24 |
| 1,000+ | $6.62 | $6.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 positions.
0.8mm (0.031 inches).
Surface Mount.
2 rows.
Gold, with a thickness of 4.00µin (0.100µm).
20mm and 30mm.
Yes, the features include Board Guide.
