| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Industrial Grade | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel |

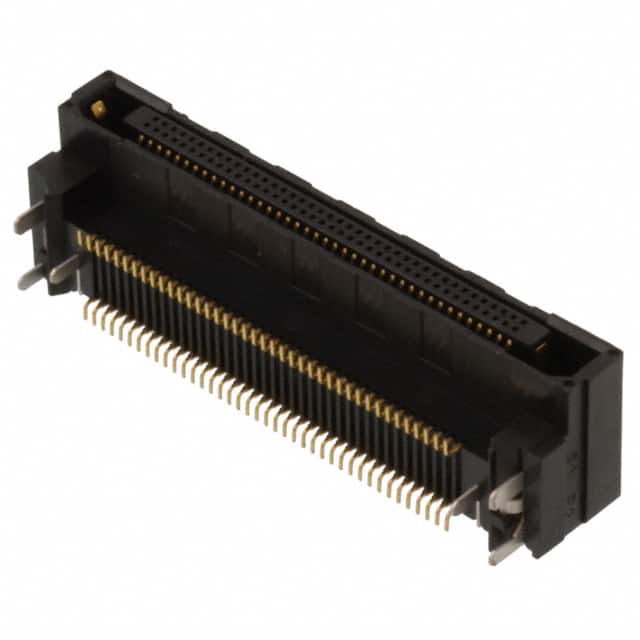

The Hirose Electric FX18-80S-0.8SH is a 80-position, 2-row, 0.8mm pitch right-angle surface mount receptacle designed for board-to-board applications. It features gold-plated contacts with a thickness of 4.00µin (0.100µm) for reliable signal integrity. The connector includes a board guide feature to assist with alignment during assembly. With a height above board of 9.50mm (0.374"), this receptacle is suitable for mezzanine and parallel board stacking configurations. The surface mount, right-angle orientation enables compact, space-saving designs in dense electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.65 | $7.65 |
| 10+ | $6.51 | $6.51 |
| 25+ | $6.10 | $6.10 |
| 50+ | $5.80 | $5.80 |
| 100+ | $5.52 | $5.52 |
| 250+ | $5.18 | $5.18 |
| 1,000+ | $4.80 | $4.80 |
| 2,500+ | $4.68 | $4.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FX18-80S-0.8SH has 80 positions arranged in 2 rows.
The pitch is 0.80mm (0.031").
The mounting type is Surface Mount, Right Angle.
The contact finish is Gold with a thickness of 4.00µin (0.100µm).
Yes, it includes a Board Guide feature.
The height above board is 9.50mm (0.374").
