| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

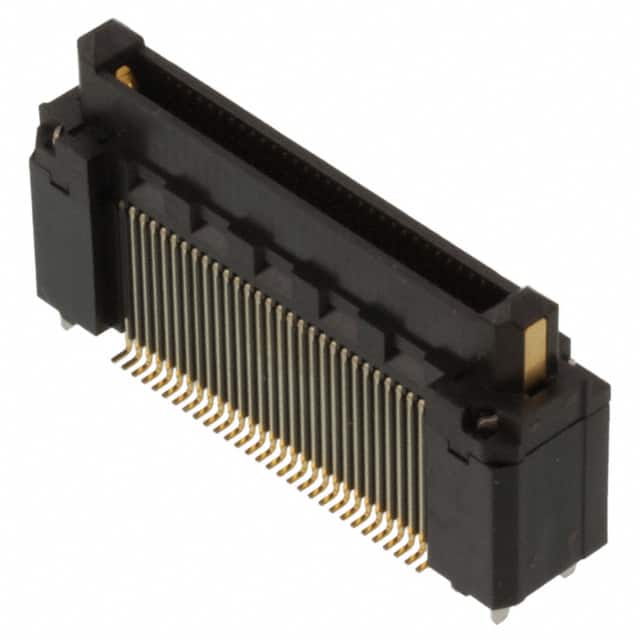

The FX18-60P-0.8SV10 is a 60 position board to board header from Hirose Electric's FX18 series. It features a 0.8mm pitch and 2 rows of outer shroud contacts. The connector is surface mount with gold contact finish of 4µin. It supports mated stacking heights of 25mm and 30mm, with a height above board of 18.65mm. The connector includes a board guide feature for alignment during assembly. This header is suitable for mezzanine board to board applications requiring high density interconnection. It is RoHS3 compliant with MSL 1 unlimited and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.80 | $8.80 |
| 10+ | $7.48 | $7.48 |
| 25+ | $7.01 | $7.01 |
| 60+ | $6.59 | $6.59 |
| 120+ | $6.27 | $6.27 |
| 300+ | $5.87 | $5.87 |
| 540+ | $5.70 | $5.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
0.80mm (0.031").
Surface Mount.
Gold, 4µin (0.100µm).
25mm and 30mm.
RoHS3 Compliant (unverified).
Yes, it includes a board guide.
