| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

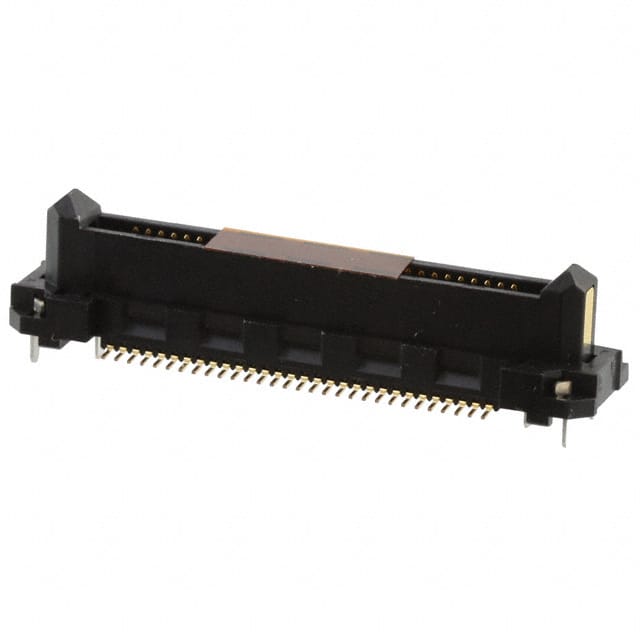

The FX18-60P-0.8SV is a 60-position, 2-row header outer shroud contacts connector from Hirose Electric, designed for board-to-board mezzanine applications. It features a 0.80mm pitch and surface mount mounting.
The connector has gold contact finish with 4.00µin thickness. It includes a board guide feature for alignment. The height above board is 8.65mm, supporting mated stacking heights of 15mm and 20mm.
This connector is suitable for mezzanine stacking configurations where a compact, high-density interconnect is required. The surface mount design enables automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.45 | $6.45 |
| 10+ | $5.83 | $5.83 |
| 25+ | $5.51 | $5.51 |
| 60+ | $4.73 | $4.73 |
| 120+ | $4.72 | $4.72 |
| 300+ | $4.56 | $4.56 |
| 540+ | $4.29 | $4.29 |
| 1,020+ | $3.80 | $3.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
0.80mm.
Surface mount.
Gold with 4.00µin thickness.
8.65mm.
15mm and 20mm.
Board guide.
