| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
540 pcs
|
540 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style |

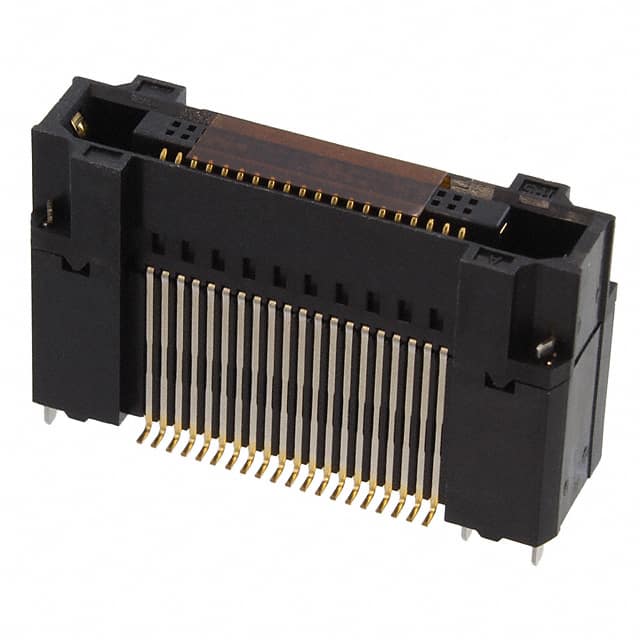

The FX18-40S-0.8SV20 is a 40-position receptacle connector from Hirose Electric, designed for mezzanine board-to-board applications. It features a 0.80mm pitch and 2 rows of center strip contacts, with surface mount termination for compact assembly.
The connector has gold-plated contacts with a thickness of 0.100µm, ensuring reliable conductivity. It includes a board guide for accurate mating and supports stacking heights of 20mm and 30mm, with a height above board of 16.46mm.
This connector is suitable for high-density interconnections in space-constrained electronic devices. It is listed as RoHS3 compliant, REACH unaffected, and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.11 | $8.11 |
| 10+ | $6.89 | $6.89 |
| 25+ | $6.46 | $6.46 |
| 120+ | $6.45 | $6.45 |
| 300+ | $6.08 | $6.08 |
| 540+ | $5.22 | $5.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
0.80mm (0.031 inches).
Surface mount (SMD).
Gold, with a thickness of 0.100µm (4.00µin).
20mm and 30mm.
Yes, it includes a board guide.
2 rows.
