| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
356 pcs
|
356 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

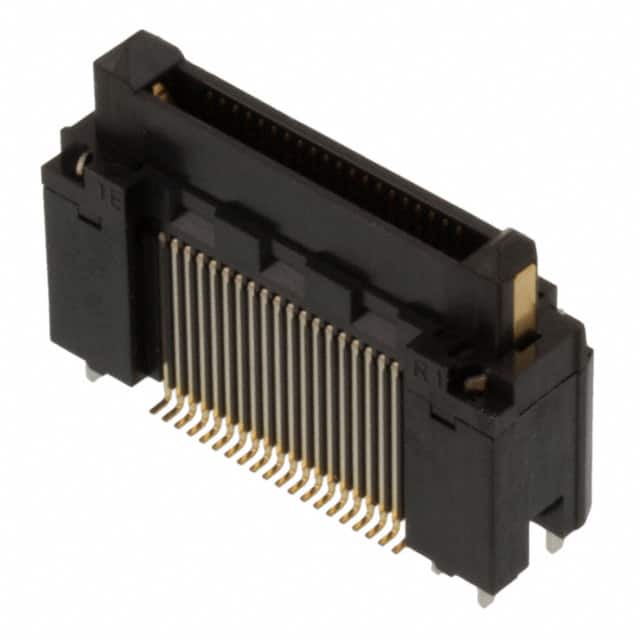

The FX18-40P-0.8SV10 is a 40-position header connector with outer shroud contacts from Hirose Electric. It features a 0.8mm pitch and 2 rows, designed for surface mount assembly. The contacts are finished with 4.00µin gold for reliable connections. The connector has a height above board of 18.65mm and supports mated stacking heights of 25mm and 30mm, making it suitable for mezzanine board-to-board applications. It includes a board guide feature for proper alignment during assembly. This connector is part of the FX18 series and is RoHS3 compliant (unverified) with an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.90 | $6.90 |
| 10+ | $6.41 | $6.41 |
| 25+ | $6.01 | $6.01 |
| 60+ | $5.65 | $5.65 |
| 120+ | $5.37 | $5.37 |
| 300+ | $5.03 | $5.03 |
| 540+ | $4.83 | $4.83 |
| 1,020+ | $4.65 | $4.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
0.80mm (0.031 inches).
Surface mount.
Gold, 4.00µin (0.100µm) thickness.
25mm and 30mm.
Yes, it includes a board guide feature.
