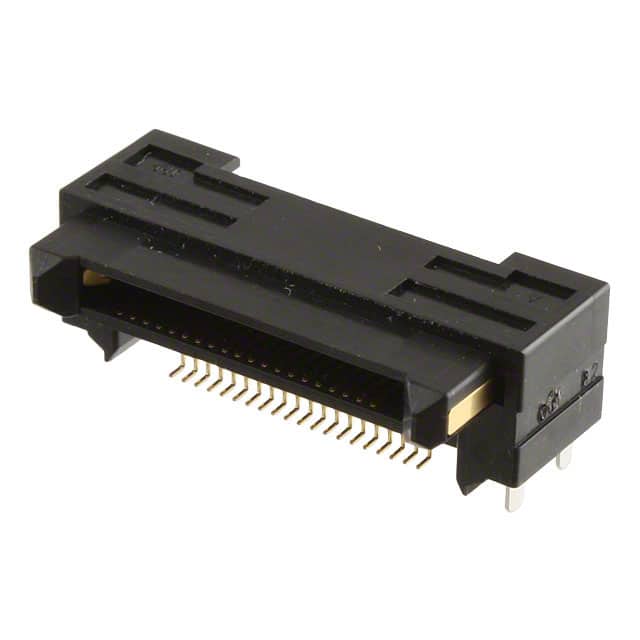

The Hirose Electric FX18-40P-0.8SH is a 40-position, 2-row board-to-board connector designed for high-density mezzanine applications. It uses a 0.80mm pitch and features a right-angle surface mount configuration, making it suitable for compact, space-constrained designs. The contacts are gold-plated with a thickness of 4.00µin (0.100µm) to ensure reliable electrical performance and corrosion resistance.
This connector includes a built-in board guide feature to aid alignment during assembly. The height above board is 0.374" (9.50mm), which is typical for mezzanine stacking applications. The termination style is SMD (surface mount), compatible with standard reflow soldering processes.
Designed as a header with outer shroud contacts, the FX18-40P-0.8SH is commonly used in industrial electronics, consumer devices, and telecom equipment where robust, high-density connections are required. Please note that electrical ratings such as current and voltage are not specified in available data, and compliance information (RoHS, MSL, REACH) is unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.88 | $6.88 |
| 10+ | $5.85 | $5.85 |
| 25+ | $5.48 | $5.48 |
| 50+ | $5.26 | $5.26 |
| 70+ | $4.84 | $4.84 |
| 280+ | $4.61 | $4.61 |
| 560+ | $4.39 | $4.39 |
| 1,050+ | $4.20 | $4.20 |
| 2,520+ | $4.13 | $4.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions, arranged in 2 rows.
0.80mm (0.031").
Surface mount, right angle.
Gold contact finish with a thickness of 4.00µin (0.100µm).
0.374" (9.50mm).
Yes, it includes a board guide feature.
Header, outer shroud contacts.
