| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style |

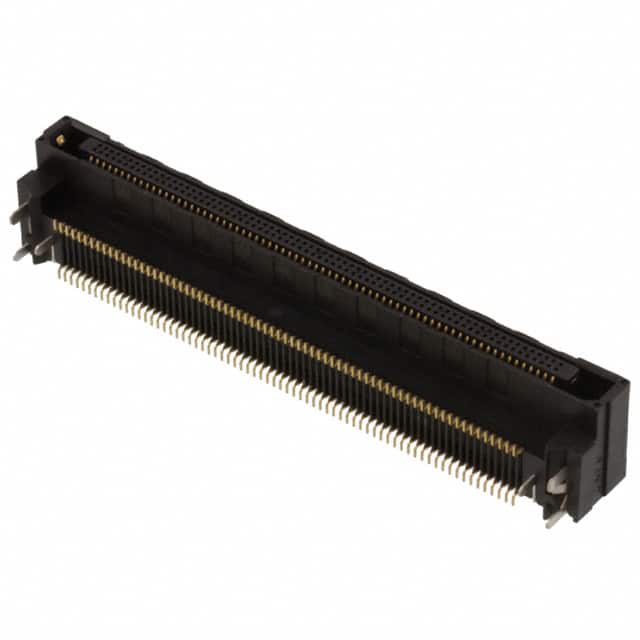

The Hirose Electric FX18-140S-0.8SH is a 140-position receptacle connector featuring center strip contacts arranged in 2 rows with a 0.80mm pitch. Designed for surface mount right angle mounting, this connector is part of the FX18 series and is suitable for board-to-board mezzanine applications.
The connector has a height above board of 9.50mm and includes a board guide feature to assist with alignment during assembly. Contacts are finished with gold plating (4.00µin / 0.100µm) for reliable signal integrity and corrosion resistance.
This component is RoHS3 compliant and has an MSL rating of 1 (unlimited), indicating no moisture sensitivity restrictions. The right angle orientation allows for low-profile, space-saving designs in dense PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.38 | $9.38 |
| 10+ | $8.41 | $8.41 |
| 25+ | $7.63 | $7.63 |
| 40+ | $7.26 | $7.26 |
| 120+ | $7.05 | $7.05 |
| 280+ | $6.37 | $6.37 |
| 520+ | $6.36 | $6.36 |
| 1,000+ | $6.07 | $6.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 140 positions arranged in 2 rows.
The pitch is 0.80mm (0.031 inches).
Surface mount, right angle.
Gold with a thickness of 4.00µin (0.100µm).
Yes, it includes a board guide feature.
