| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

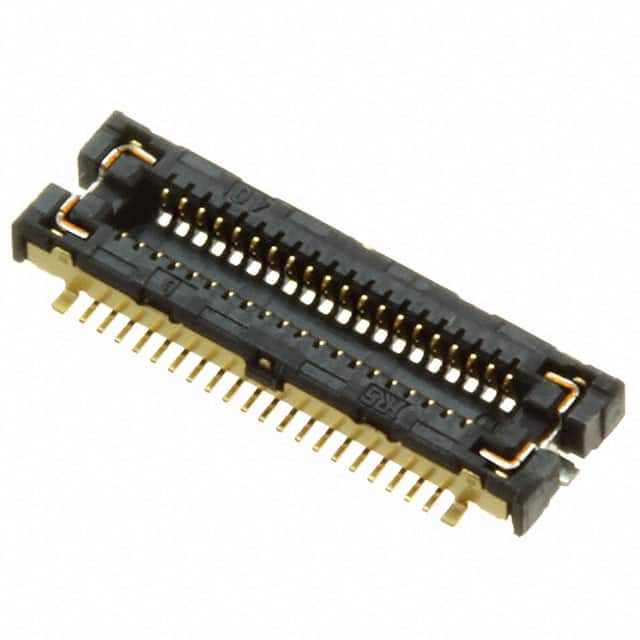

The Hirose Electric FX12B-40S-0.4SV is a 40 position receptacle connector featuring outer shroud contacts arranged in 2 rows on a 0.4mm pitch. Designed for surface mount assembly, this connector supports a mated stacking height of 1.5mm, making it suitable for compact board-to-board mezzanine applications.
The contacts are finished with 4.00µin (0.100µm) of gold, ensuring reliable electrical performance and corrosion resistance. The connector includes a solder retention feature to improve mechanical stability during reflow soldering and in end-use environments.
With a height above board of 1.20mm, the FX12B-40S-0.4SV is optimized for low-profile designs. It is part of the FX12B series from Hirose Electric, a manufacturer known for high-density interconnect solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.62 | $1.62 |
| 10+ | $1.38 | $1.38 |
| 25+ | $1.23 | $1.23 |
| 100+ | $1.17 | $1.17 |
| 250+ | $1.10 | $1.10 |
| 500+ | $1.05 | $1.05 |
| 1,000+ | $0.96 | $0.96 |
| 3,000+ | $0.88 | $0.88 |
| 6,000+ | $0.84 | $0.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Receptacle, Outer Shroud Contacts.
40 positions arranged in 2 rows.
0.40mm.
Surface Mount.
Gold, 4.00µin (0.100µm) thickness.
1.5mm.
Yes, it includes a solder retention feature.
