| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
105 pcs
|
105 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

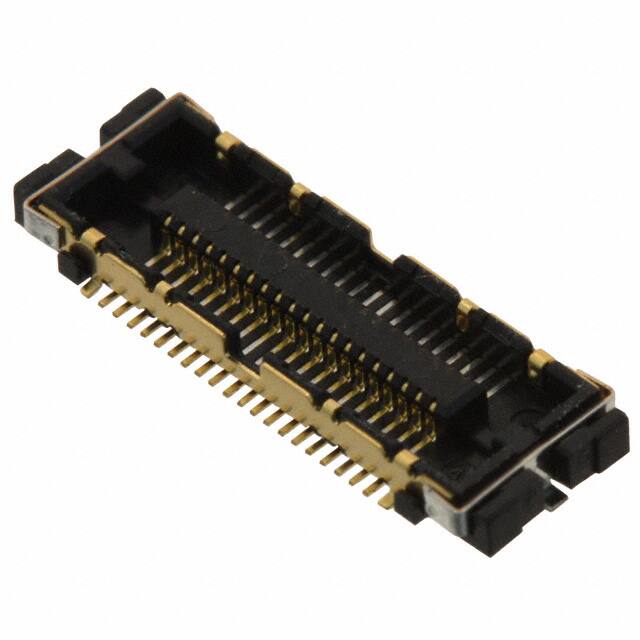

The Hirose Electric FX12B-40P-0.4SV is a 40-position board-to-board plug connector featuring a 0.4mm pitch and two rows of center strip contacts. This connector is designed for surface mount mounting and includes solder retention features to ensure reliable mechanical attachment during assembly.
The contacts are finished with 4.00µin (0.100µm) of gold, providing good conductivity and corrosion resistance. The connector has a height above board of 1.35mm and supports a mated stacking height of 1.5mm, making it suitable for low-profile mezzanine board-to-board applications.
This connector is RoHS3 compliant and has an MSL rating of 1 (unlimited), indicating no moisture sensitivity restrictions. It is categorized under Arrays, Edge Type, Mezzanine (Board to Board) connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.64 | $1.64 |
| 10+ | $1.34 | $1.34 |
| 25+ | $1.16 | $1.16 |
| 100+ | $1.10 | $1.10 |
| 250+ | $1.01 | $1.01 |
| 500+ | $0.95 | $0.95 |
| 1,000+ | $0.89 | $0.89 |
| 3,000+ | $0.88 | $0.88 |
| 6,000+ | $0.86 | $0.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.40mm (0.016 inches).
It has 40 positions arranged in 2 rows.
It is a surface mount connector.
The contacts are finished with gold, with a thickness of 4.00µin (0.100µm).
The mated stacking height is 1.5mm.
Yes, it features solder retention for improved mechanical stability.
