| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style |

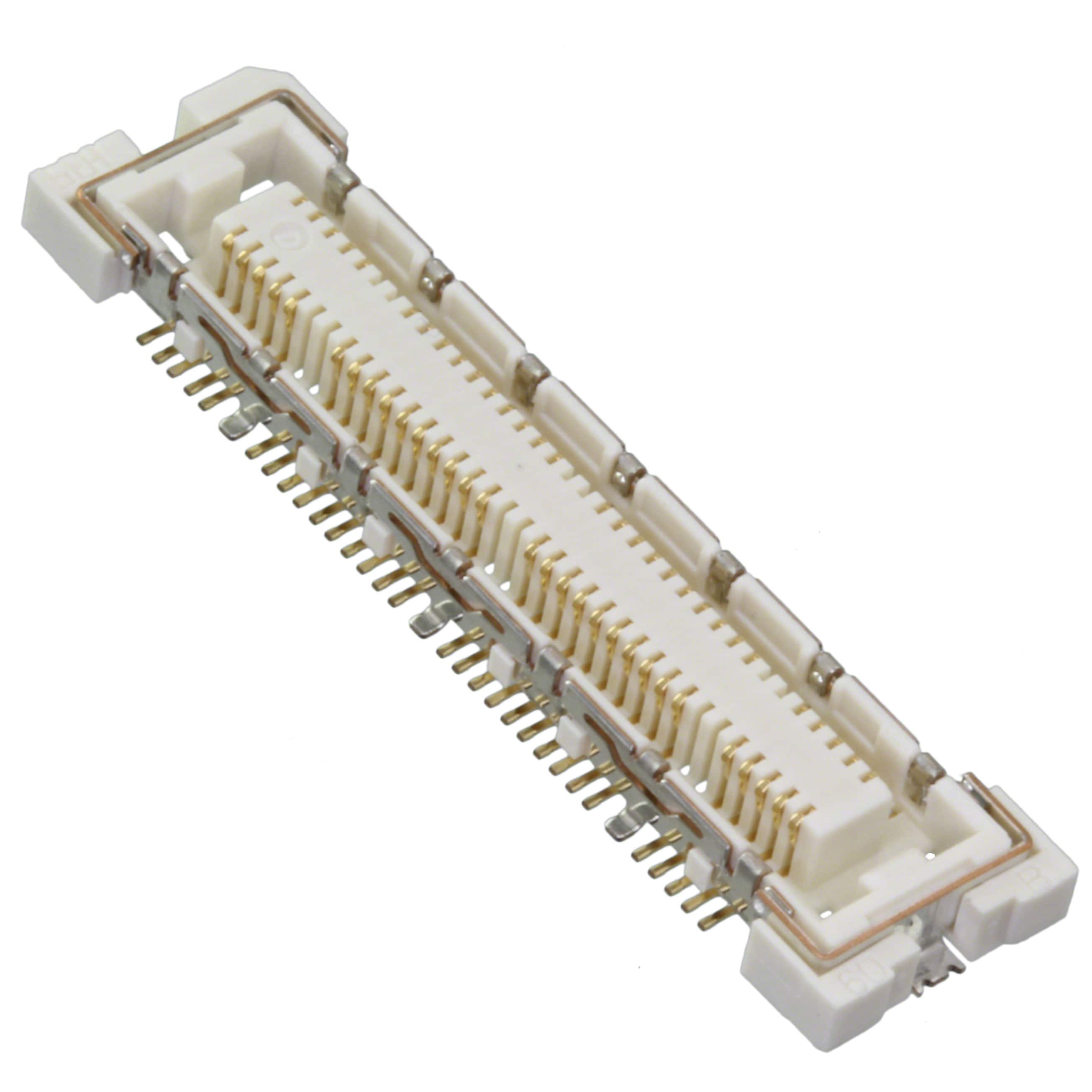

The Hirose FX11A-60S/6-SV(71) is a 60-position, 2-row surface mount receptacle connector from the FX11 series. It features a 0.50mm pitch and gold plated contacts with a thickness of 0.100µm, ensuring reliable electrical performance. The connector supports mated stacking heights of 2.5mm and 3mm, making it suitable for compact mezzanine board-to-board applications.
This receptacle includes integral board guides for proper alignment during assembly, a ground plate for enhanced EMI shielding, and solder retention features to secure the connector during reflow soldering. The connector is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
With its high-density 60-contact configuration in a small footprint, the FX11A-60S/6-SV(71) is ideal for space-constrained electronics requiring reliable board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.05 | $6.05 |
| 10+ | $5.51 | $5.51 |
| 25+ | $5.22 | $5.22 |
| 50+ | $4.87 | $4.87 |
| 80+ | $4.21 | $4.21 |
| 240+ | $3.68 | $3.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
0.50mm.
Surface mount.
2.5mm and 3mm.
Board guide, ground plate, solder retention.
Gold with 0.100µm thickness.
2 rows.
