| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style |

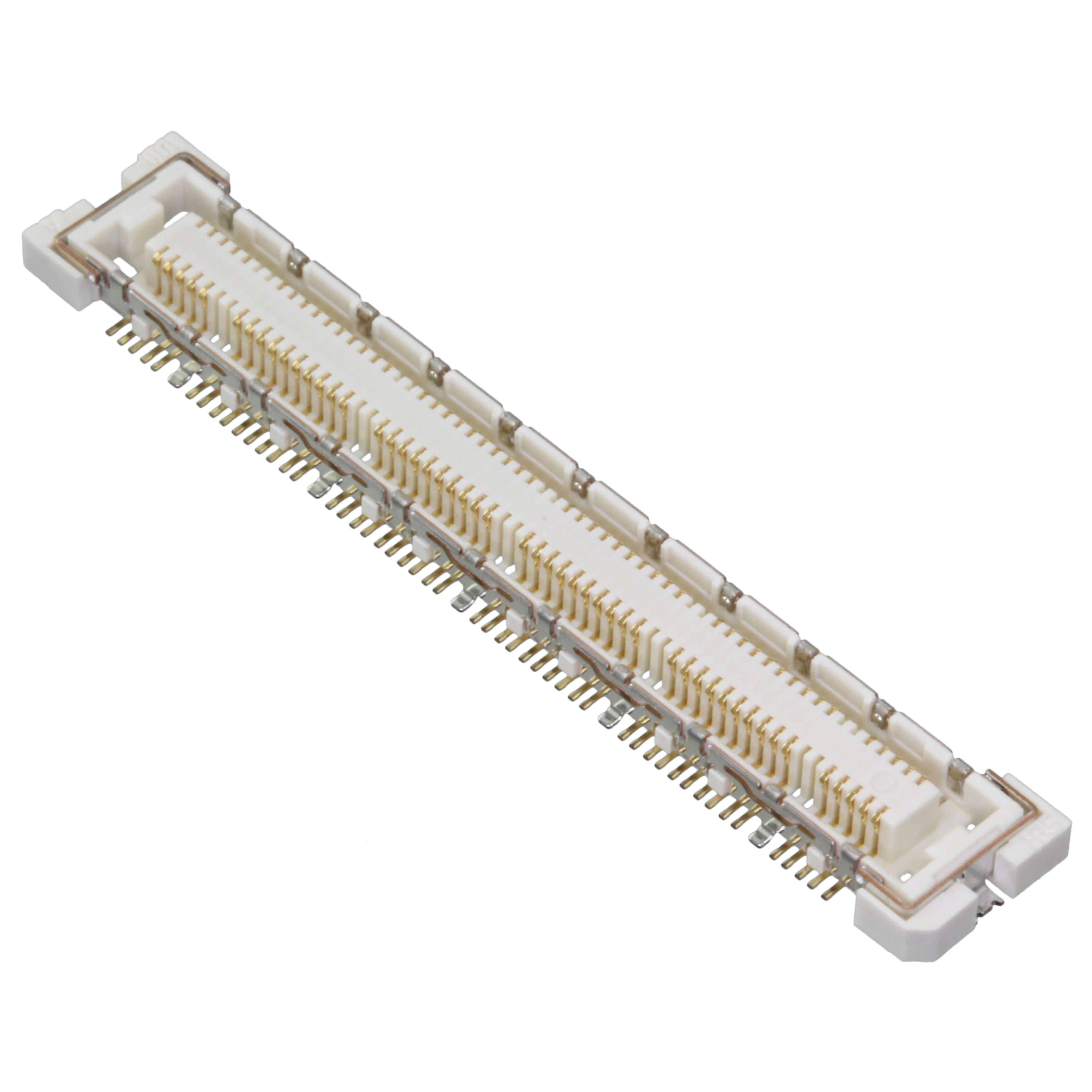

The FX11A-100S/10-SV(71) is a 100 position, 0.50mm pitch, 2 row receptacle connector from Hirose Electric's FX11A series. This connector features center strip contacts and is designed for surface mount applications. It includes board guide, ground plate, and solder retention features for reliable board-to-board connections.
The connector has a height above board of 2.10mm and supports mated stacking heights of 2.5mm and 3mm. Contacts are finished with gold plating (0.100µm thickness) for reliable signal integrity. The connector is RoHS3 compliant and has an MSL of Level 1 Unlimited.
This connector is suitable for mezzanine (board-to-board) applications requiring high density and low profile. The 0.50mm pitch allows for compact designs while maintaining 100 signal paths.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.53 | $6.53 |
| 10+ | $5.55 | $5.55 |
| 25+ | $5.21 | $5.21 |
| 60+ | $4.89 | $4.89 |
| 120+ | $4.65 | $4.65 |
| 300+ | $4.36 | $4.36 |
| 540+ | $4.18 | $4.18 |
| 1,020+ | $4.12 | $4.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm.
It has 100 positions.
Surface mount.
Gold, with a thickness of 0.100µm.
2.5mm and 3mm.
Board guide, ground plate, and solder retention.
